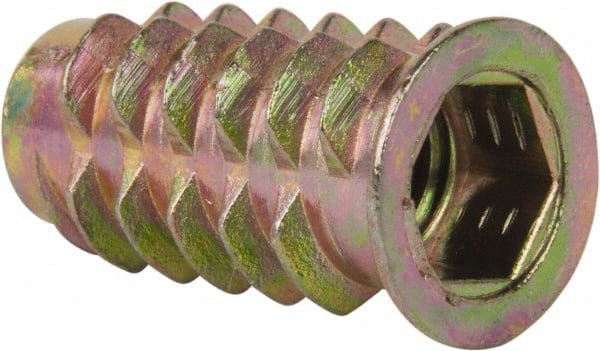

E-Z LOK - 5/16-18, Zinc Alloy Flanged Hex Drive Insert - 7/16" Drill, 0.4331" Hole Diam, 63/64" Long, 1" Min Grip, M8 Hex
Item #: 09142555
Brand: E-Z LOK
Model #: 951618-25
Exact Tooling IR#: 04
Features and Benefits
Flanged hex drive types have a weight-bearing lip, or flange, along the top of the insert to anchor it in place.
Zinc alloy is a tough, strong and stable material. It is used on steel for decorative purposes and to resist corrosion.
| Product Specifications | |
|---|---|
| Type | Flanged Hex Drive |
| System of Measurement | Inch |
| For Material Type | Wood |
| Material | Zinc Alloy |
| Thread Size | 5/16-18 |
| Overall Length (mm) | 25.00 |
| Overall Length (Decimal Inch) | 0.9843 |
| Insert Diameter (Decimal Inch) | 0.5500 |
| Hole Diameter (Decimal Inch) | 0.4331 |
| Hole Diameter (mm) | 11.00 |
| Hex Size (mm) | M8 |
| Minimum Grip (Decimal Inch) | 1.0000 |
| Head Diameter (Decimal Inch) | 0.5500 |
| Head Height (Decimal Inch) | 0.0210 |
| Drill Size (Inch) | 7/16 |
| Thread Standard | UNC |
