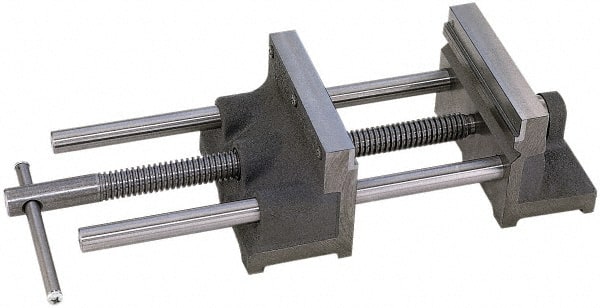

Heinrich - 10" Jaw Opening Capacity x 2-1/2" Throat Depth, Horizontal Drill Press Vise - 8" Wide Jaw, Stationary Base, Standard Speed, 18" OAL x 5" Overall Height
Item #: 09145301
Brand: Heinrich
Model #: 30-ASSEMBLY
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Stationary or fixed vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Standard spindle operations feature a continuous nut design for consistent jaw movement.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 8 |
| Jaw Opening Capacity (Inch) | 10 |
| Jaw Opening Capacity (Decimal Inch) | 10.0000 |
| Throat Depth (Inch) | 2-1/2 |
| Throat Depth (Decimal Inch) | 2.5000 |
| Orientation Type | Horizontal |
| Base Motion Type | Stationary |
| Spindle Operation Type | Standard |
| Overall Length (Inch) | 18 |
| Overall Height (Inch) | 5 |
| Base Length (Inch) | 17-3/4 |
| Jaw Style | V-Groove |
