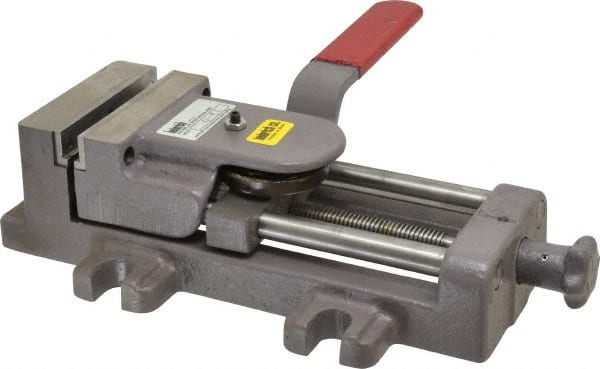

Heinrich - 4" Jaw Opening Capacity x 1-3/8" Throat Depth, Horizontal Drill Press Vise - 4" Wide x 1-3/8" High Jaw, Stationary Base, Standard Speed, 11-3/4" OAL
Item #: 09146044
Brand: Heinrich
Model #: 4-CL-ASSEMBLY
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Stationary or fixed vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Standard spindle operations feature a continuous nut design for consistent jaw movement.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 4 |
| Jaw Opening Capacity (Inch) | 4 |
| Jaw Opening Capacity (Decimal Inch) | 4.0000 |
| Throat Depth (Inch) | 1-3/8 |
| Throat Depth (Decimal Inch) | 1.3750 |
| Orientation Type | Horizontal |
| Base Motion Type | Stationary |
| Spindle Operation Type | Standard |
| Overall Length (Inch) | 11-3/4 |
| Model Number | 4-CL |
| Jaw Height (Inch) | 1-3/8 |
