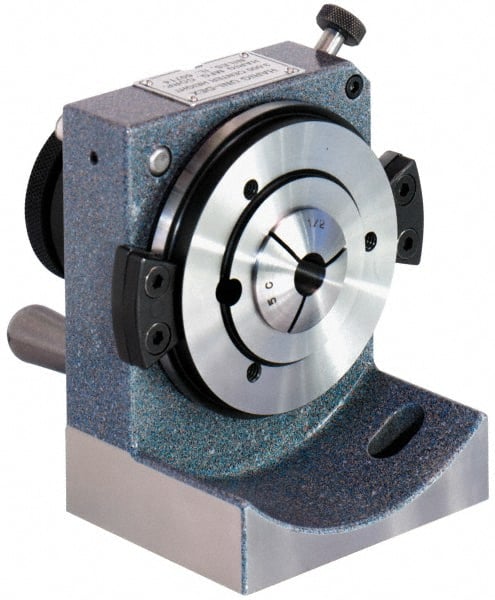

Harig - 5C Compatible, 24 Increment, Horizontal Standard Collet Indexer - 3" High Center, 1" Max Collet Capacity, 4" Wide x 3-1/4" Deep Base, 5-41/64" Overall Height, Manual Operation
Item #: 09149808
Brand: Harig
Model #: 070-100
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Standard Collet Indexer |
| Orientation Type | Horizontal |
| Number of Indexing Increments | 24 |
| Collet Series Compatibility | 5C |
| Centerline Height (Decimal Inch) | 3.0000 |
| Centerline Height (Inch) | 3 |
| Maximum Collet Capacity (Inch) | 1 |
| Indexing Accuracy (sec.) | 10.00 |
| Squareness - Base to Face (Decimal Inch) | 0.000100 |
| Spindle Runout (Decimal Inch) | 0.000050 |
| Operation Type | Manual |
| Base Width (Decimal Inch) | 4.0000 |
| Base Depth (Inch) | 3-1/4 |
| Overall Height (Inch) | 5-41/64 |
