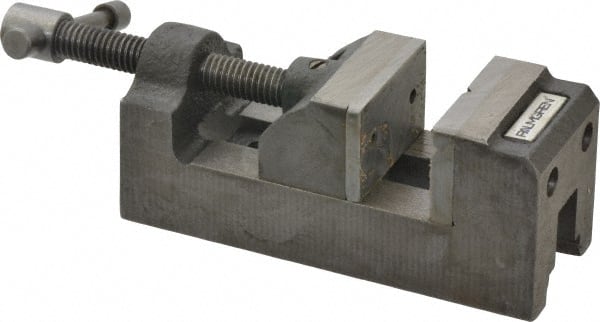

Palmgren - 1-1/2" Jaw Opening Capacity x 1" Throat Depth, Horizontal Drill Press Vise - 1-1/2" Wide Jaw, Stationary Base, Standard Speed, 5-1/8" OAL x 1-13/16" Overall Height, Cast Iron
Item #: 09190224
Brand: Palmgren
Model #: 9612152
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Stationary or fixed vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Standard spindle operations feature a continuous nut design for consistent jaw movement.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 1-1/2 |
| Jaw Opening Capacity (Inch) | 1-1/2 |
| Jaw Opening Capacity (Decimal Inch) | 1.5000 |
| Throat Depth (Inch) | 1 |
| Throat Depth (Decimal Inch) | 1.0000 |
| Orientation Type | Horizontal |
| Base Motion Type | Stationary |
| Spindle Operation Type | Standard |
| Overall Length (Inch) | 5-1/8 |
| Overall Height (Inch) | 1-13/16 |
| Vise Material | Cast Iron |
| Model Number | 6 |
| Jaw Style | Grooved |
| Jaw Material | Steel |
