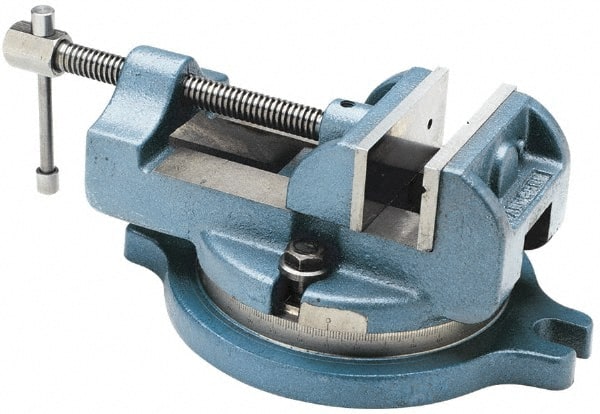

Palmgren - 4" Jaw Width, 4" Jaw Opening Capacity, Horizontal Swivel Machine Vise - Manual Operation, 1 Station, 11-3/4" Long x 4-3/4" High x 1-3/4" Deep, 1-3/4" Jaw Height, 30,000 psi Max Clamp Force, Cast Iron
Item #: 09193848
Brand: Palmgren
Model #: 9618402
Exact Tooling IR#: 04
Features and Benefits
Horizontal vises slide from side to side during milling operations.
Swivel vises are designed to rotate 360 degrees without moving the workpiece from the vise.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 4 |
| Jaw Opening Capacity (Inch) | 4 |
| Throat Depth (Inch) | 1-3/4 |
| Orientation Type | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Swivel |
| Operation Type | Manual |
| Jaw Height (Inch) | 1-3/4 |
| Jaw Material | Steel |
| Precision | No |
| Overall Length (Inch) | 11-3/4 |
| Vise Material | Cast Iron |
| Maximum Clamping Force (psi) | 30000.00 |
| Overall Height (Inch) | 4-3/4 |
| Jaw Style | V-Groove |
| Model Number | 410B |
