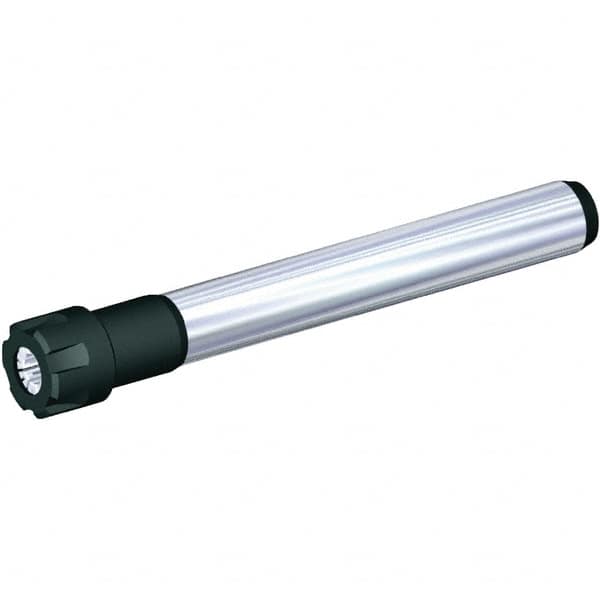

Kennametal - 0.02" to 1/2" Capacity, 40mm Projection, Straight Shank, ER20 Collet Chuck - 190mm OAL, 25mm Shank Diam
Item #: 09201476
Brand: Kennametal
Model #: 1288321
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Projection (mm) | 40.00 |
| Projection (Decimal Inch) | 1.5750 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0200 |
| Minimum Collet Capacity (mm) | 0.51 |
| Maximum Collet Capacity (mm) | 12.70 |
| Maximum Collet Capacity (Inch) | 1/2 |
| Maximum Collet Capacity (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 190.00 |
| Overall Length (Decimal Inch) | 7.4803 |
| Actuator Type | Wrench |
| Shank Length (mm) | 150.00 |
| Hex Diameter (mm) | 28.00 |
| PSC Code | 5136 |
| Balanced to (RPM) | 8000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0025 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.1020 |
| Collet Nut Diameter (mm) | 27.99 |
