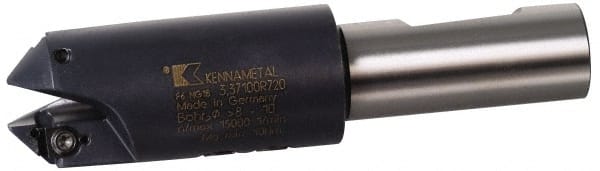

Kennametal - 4 to 6mm Diam, Whistle Notch Shank, 20mm Body Shank Diam, 45° Combo Chamfer and Countersink Drill - 6mm Drill Shank Diam, 3.42805R001 Insert, 102mm OAL
Item #: 09201690
Brand: Kennametal
Model #: 1245735
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Whistle Notch Shank |
| Maximum Drill Diameter (mm) | 6.00 |
| Minimum Drill Diameter (mm) | 4.00 |
| Body Shank Diameter (mm) | 20.00 |
| Drill Shank Diameter (mm) | 6.00 |
| Number of Drill Inserts | 2 |
| Insert Style | 3.42805R001 |
| Chamfer Angle | 45 |
| Body Diameter (mm) | 24.00 |
| Overall Length (mm) | 102.00 |
| Included Angle | 90 |
| Insert Holding Method | Clamp; Screw |
| Shank Length (mm) | 52.00 |
| Maximum Screw Adjustment (mm) | 18.00 |
| Through Coolant | NonThrough Coolant |
| Series | SEFAS |
| Includes | Clamp; Screw; Wrench |
