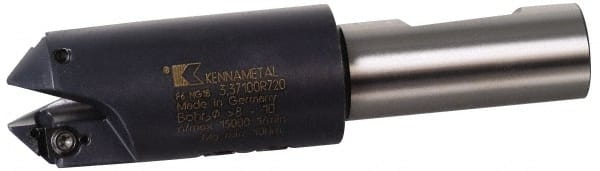

Kennametal - 16 to 18mm Diam, Whistle Notch Shank, 32mm Body Shank Diam, 45° Combo Chamfer and Countersink Drill - 18mm Drill Shank Diam, 3.42807R001 Insert, 144mm OAL
Item #: 09201724
Brand: Kennametal
Model #: 1245738
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Whistle Notch Shank |
| Maximum Drill Diameter (mm) | 18.00 |
| Minimum Drill Diameter (mm) | 16.00 |
| Body Shank Diameter (mm) | 32.00 |
| Drill Shank Diameter (mm) | 18.00 |
| Number of Drill Inserts | 2 |
| Insert Style | 3.42807R001 |
| Chamfer Angle | 45 |
| Body Diameter (mm) | 47.00 |
| Overall Length (mm) | 144.00 |
| Included Angle | 90 |
| Insert Holding Method | Clamp; Screw |
| Shank Length (mm) | 62.00 |
| Maximum Screw Adjustment (mm) | 15.00 |
| Through Coolant | NonThrough Coolant |
| Series | SEFAS |
| Includes | Clamp; Screw; Wrench |
