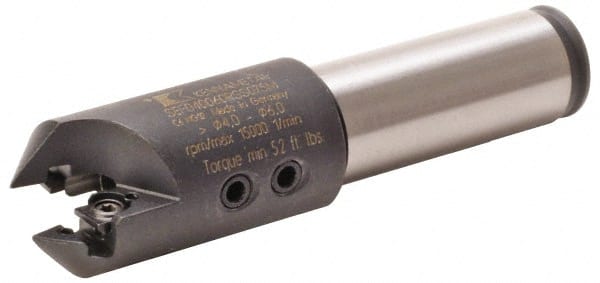

Kennametal - 4 to 6mm Diam, Straight Shank, 19.05mm Body Shank Diam, 45° Combo Chamfer and Countersink Drill - 6mm Drill Shank Diam, 3.42805R001 Insert, 4.06" OAL
Item #: 09201807
Brand: Kennametal
Model #: 1604140
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 6.00 |
| Minimum Drill Diameter (mm) | 4.00 |
| Body Shank Diameter (mm) | 19.05 |
| Body Shank Diameter (Decimal Inch) | 0.7500 |
| Drill Shank Diameter (mm) | 6.00 |
| Drill Shank Diameter (Decimal Inch) | 0.2362 |
| Number of Drill Inserts | 2 |
| Insert Style | 3.42805R001 |
| Chamfer Angle | 45 |
| Body Diameter (Decimal Inch) | 0.9400 |
| Overall Length (Decimal Inch) | 4.0600 |
| Included Angle | 90 |
| Insert Holding Method | Clamp; Screw |
| Shank Length (mm) | 50.80 |
| Shank Length (Decimal Inch) | 2.0000 |
| Maximum Screw Adjustment (Decimal Inch) | 0.7090 |
| Through Coolant | NonThrough Coolant |
| Series | SEFAS |
| Includes | Clamp; Screw; Wrench |
