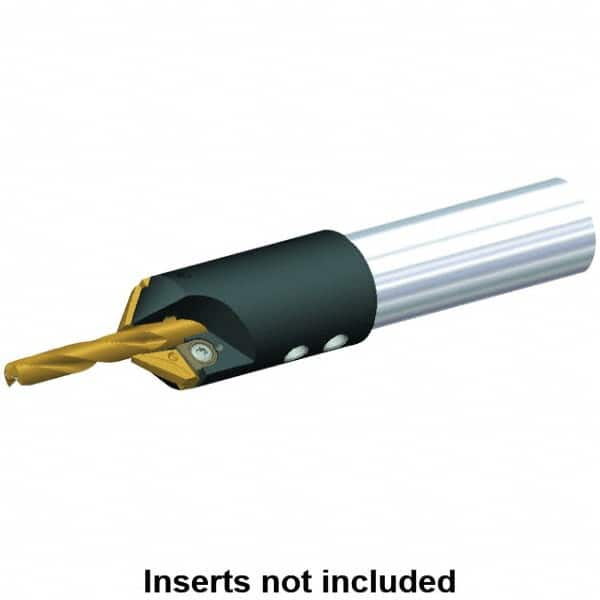

Kennametal - 5/16" to 9.53mm Diam, Straight Shank, 19.05mm Body Shank Diam, 45° Combo Chamfer and Countersink Drill - 3/8" Drill Shank Diam, 3.42805R001 Insert, 4.63" OAL
Item #: 09201906
Brand: Kennametal
Model #: 1604280
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 9.53 |
| Maximum Drill Diameter (Decimal Inch) | 0.3750 |
| Minimum Drill Diameter (Decimal Inch) | 0.3130 |
| Body Shank Diameter (mm) | 19.05 |
| Body Shank Diameter (Decimal Inch) | 0.7500 |
| Drill Shank Diameter (Decimal Inch) | 0.3750 |
| Number of Drill Inserts | 2 |
| Insert Style | 3.42805R001 |
| Chamfer Angle | 45 |
| Body Diameter (Decimal Inch) | 1.1600 |
| Overall Length (Decimal Inch) | 4.6300 |
| Included Angle | 90 |
| Insert Holding Method | Clamp; Screw |
| Shank Length (mm) | 50.80 |
| Shank Length (Decimal Inch) | 2.0000 |
| Maximum Screw Adjustment (Decimal Inch) | 0.6690 |
| Through Coolant | NonThrough Coolant |
| Series | SEFAS |
| Includes | Clamp; Screw; Wrench |
