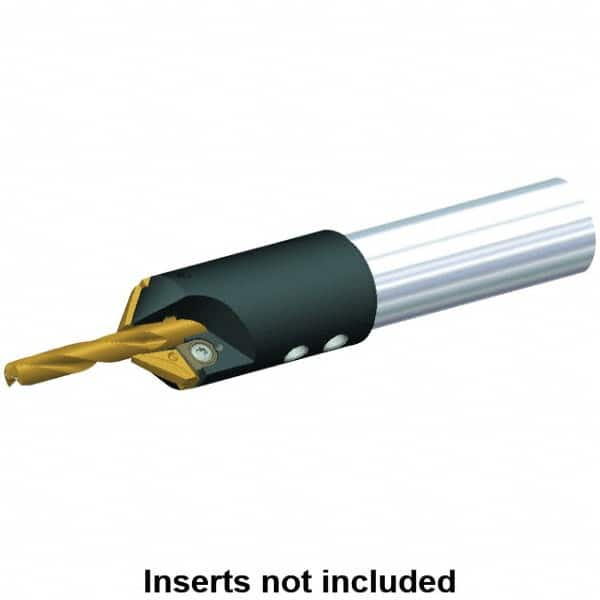

Kennametal - 3/8" to 11.13mm Diam, Straight Shank, 25.4mm Body Shank Diam, 45° Combo Chamfer and Countersink Drill - 7/16" Drill Shank Diam, 3.42807R001 Insert, 5-3/4" OAL
Item #: 09201914
Brand: Kennametal
Model #: 1604301
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 11.13 |
| Maximum Drill Diameter (Decimal Inch) | 0.4380 |
| Minimum Drill Diameter (Decimal Inch) | 0.3750 |
| Body Shank Diameter (mm) | 25.40 |
| Body Shank Diameter (Decimal Inch) | 1.0000 |
| Drill Shank Diameter (Decimal Inch) | 0.4380 |
| Number of Drill Inserts | 2 |
| Insert Style | 3.42807R001 |
| Chamfer Angle | 45 |
| Body Diameter (Decimal Inch) | 1.4700 |
| Overall Length (Decimal Inch) | 5.7500 |
| Included Angle | 90 |
| Insert Holding Method | Clamp; Screw |
| Shank Length (mm) | 76.20 |
| Shank Length (Decimal Inch) | 3.0000 |
| Maximum Screw Adjustment (Decimal Inch) | 0.7480 |
| Through Coolant | NonThrough Coolant |
| Series | SEFAS |
| Includes | Clamp; Screw; Wrench |
