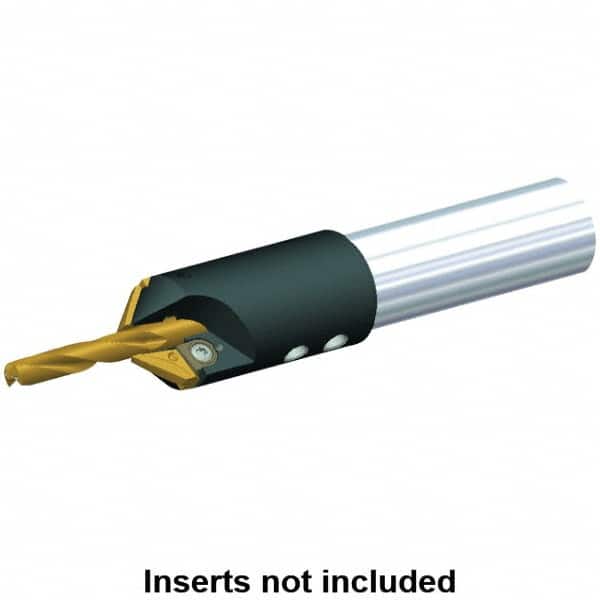

Kennametal - 1/2" to 14.3mm Diam, Straight Shank, 25.4mm Body Shank Diam, 45° Combo Chamfer and Countersink Drill - 9/16" Drill Shank Diam, 3.42807R001 Insert, 6.06" OAL
Item #: 09201930
Brand: Kennametal
Model #: 1604303
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 14.30 |
| Maximum Drill Diameter (Decimal Inch) | 0.5630 |
| Minimum Drill Diameter (Decimal Inch) | 0.5000 |
| Body Shank Diameter (mm) | 25.40 |
| Body Shank Diameter (Decimal Inch) | 1.0000 |
| Drill Shank Diameter (Decimal Inch) | 0.5630 |
| Number of Drill Inserts | 2 |
| Insert Style | 3.42807R001 |
| Chamfer Angle | 45 |
| Body Diameter (Decimal Inch) | 1.5900 |
| Overall Length (Decimal Inch) | 6.0600 |
| Included Angle | 90 |
| Insert Holding Method | Clamp; Screw |
| Shank Length (mm) | 76.20 |
| Shank Length (Decimal Inch) | 3.0000 |
| Maximum Screw Adjustment (Decimal Inch) | 0.6300 |
| Through Coolant | NonThrough Coolant |
| Series | SEFAS |
| Includes | Clamp; Screw; Wrench |
