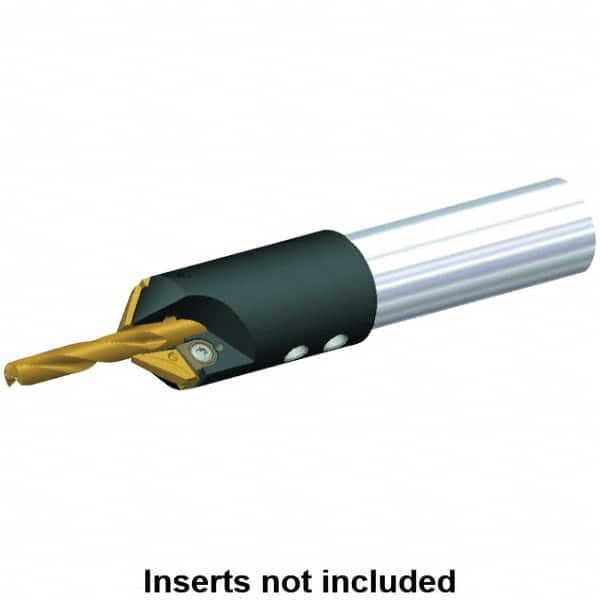

Kennametal - 11/16" to 19.05mm Diam, Straight Shank, 31.75mm Body Shank Diam, 45° Combo Chamfer and Countersink Drill - 3/4" Drill Shank Diam, 3.42807R001 Insert, 6.56" OAL
Item #: 09201963
Brand: Kennametal
Model #: 1604306
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 19.05 |
| Maximum Drill Diameter (Decimal Inch) | 0.7500 |
| Minimum Drill Diameter (Decimal Inch) | 0.6880 |
| Body Shank Diameter (mm) | 31.75 |
| Body Shank Diameter (Decimal Inch) | 1.2500 |
| Drill Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Drill Inserts | 2 |
| Insert Style | 3.42807R001 |
| Chamfer Angle | 45 |
| Body Diameter (Decimal Inch) | 1.8800 |
| Overall Length (Decimal Inch) | 6.5600 |
| Included Angle | 90 |
| Insert Holding Method | Clamp; Screw |
| Shank Length (mm) | 82.55 |
| Shank Length (Decimal Inch) | 3.2500 |
| Maximum Screw Adjustment (Decimal Inch) | 0.6690 |
| Through Coolant | NonThrough Coolant |
| Series | SEFAS |
| Includes | Clamp; Screw; Wrench |
