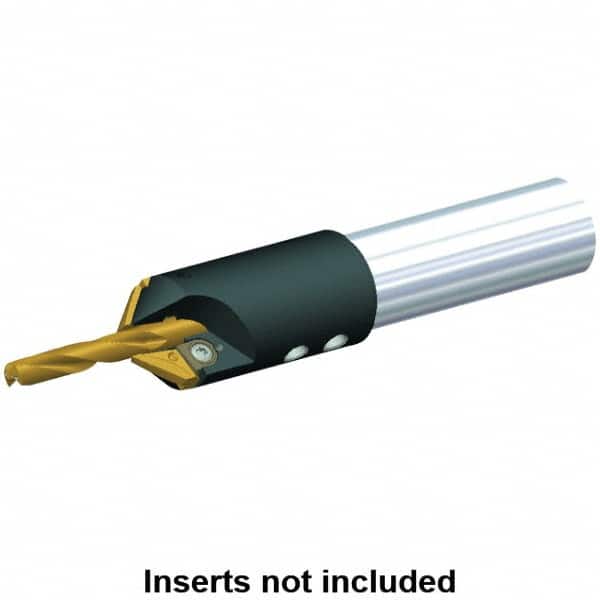

Kennametal - 13/16" to 22.23mm Diam, Straight Shank, 38.1mm Body Shank Diam, 45° Combo Chamfer and Countersink Drill - 7/8" Drill Shank Diam, 3.42807R001 Insert, 7-1/4" OAL
Item #: 09202052
Brand: Kennametal
Model #: 1956753
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 22.23 |
| Maximum Drill Diameter (Decimal Inch) | 0.8750 |
| Minimum Drill Diameter (Decimal Inch) | 0.8130 |
| Body Shank Diameter (mm) | 38.10 |
| Body Shank Diameter (Decimal Inch) | 1.5000 |
| Drill Shank Diameter (Decimal Inch) | 0.8750 |
| Number of Drill Inserts | 2 |
| Insert Style | 3.42807R001 |
| Chamfer Angle | 45 |
| Body Diameter (Decimal Inch) | 2.0900 |
| Overall Length (Decimal Inch) | 7.2500 |
| Included Angle | 90 |
| Insert Holding Method | Clamp; Screw |
| Shank Length (mm) | 95.25 |
| Shank Length (Decimal Inch) | 3.7500 |
| Maximum Screw Adjustment (Decimal Inch) | 0.6300 |
| Through Coolant | NonThrough Coolant |
| Series | SEFAS |
| Includes | Clamp; Screw; Wrench |
