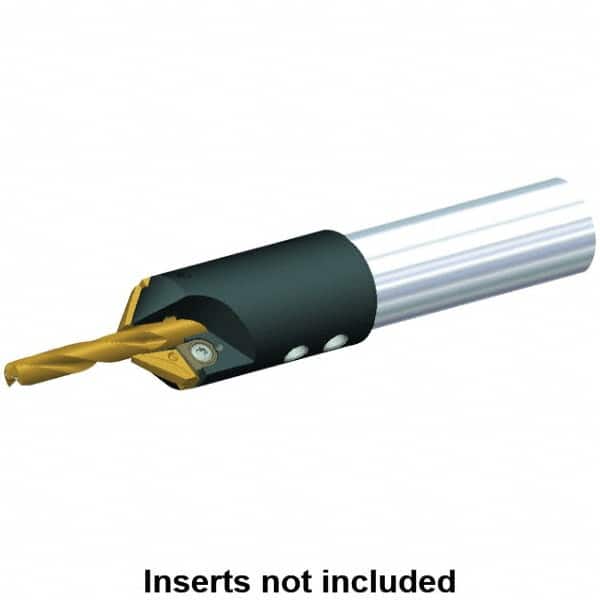

Kennametal - 15/16" to 25.65mm Diam, Straight Shank, 38.1mm Body Shank Diam, 45° Combo Chamfer and Countersink Drill - 1" Drill Shank Diam, 3.42807R001 Insert, 7-1/2" OAL
Item #: 09202078
Brand: Kennametal
Model #: 1956755
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 25.65 |
| Maximum Drill Diameter (Decimal Inch) | 1.0100 |
| Minimum Drill Diameter (Decimal Inch) | 0.9380 |
| Body Shank Diameter (mm) | 38.10 |
| Body Shank Diameter (Decimal Inch) | 1.5000 |
| Drill Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Insert Style | 3.42807R001 |
| Chamfer Angle | 45 |
| Body Diameter (Decimal Inch) | 2.2500 |
| Overall Length (Decimal Inch) | 7.5000 |
| Included Angle | 90 |
| Insert Holding Method | Clamp; Screw |
| Shank Length (mm) | 95.25 |
| Shank Length (Decimal Inch) | 3.7500 |
| Maximum Screw Adjustment (Decimal Inch) | 0.7090 |
| Through Coolant | NonThrough Coolant |
| Series | SEFAS |
| Includes | Clamp; Screw; Wrench |
