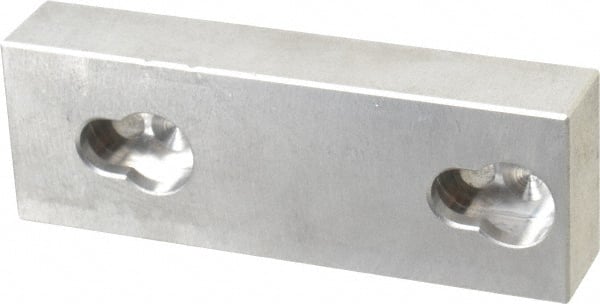

Kurt - 3.969" Wide x 1-3/8" High x 0.73" ThickFlat/No Step Vise Jaw - Aluminum, Fixed Jaw, Compatible with 4" Vises
Item #: 09219544
Brand: Kurt
Model #: AJ400-234
Exact Tooling IR#: 04
Features and Benefits
Flat/no step jaws, also known as soft jaws, can be machined to the shape of the part. They are made of soft materials such as aluminum or mild steel.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Fixed or stationary jaw bodies are non-movable and remain in a fixed position on the vise bed. Jaw plates are mounted to the jaw body.
| Product Specifications | |
|---|---|
| Jaw Shape | Flat/No Step |
| Jaw Width (Decimal Inch) | 3.9690 |
| Jaw Height (Decimal Inch) | 1.3740 |
| Jaw Thickness (Decimal Inch) | 0.7300 |
| Material | Aluminum |
| Jaw Movement Type | Fixed |
| Vise Compatibility | 4" Vises |
| Attachment Method | Bolt-On |
| Reversible | Yes |
| Model Number | AJ400 |
