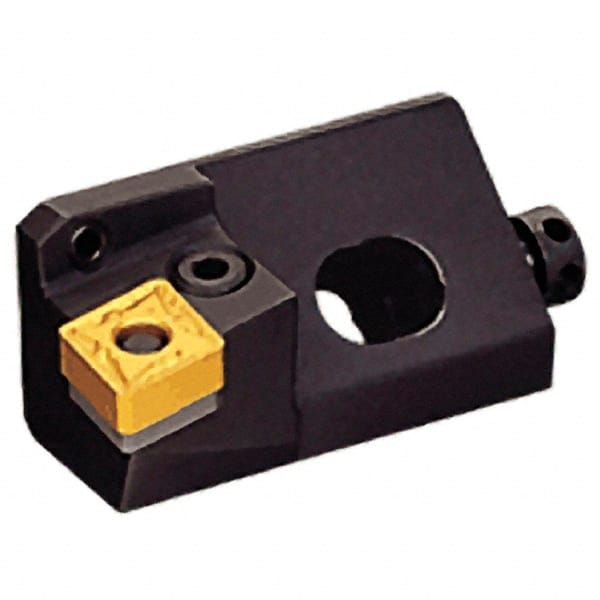

Iscar - Series Isoturn, Right Hand, PCLN Toolholder Compatibility, CN.. Insert Compatibility, Indexable Turning Cartridge - Lever Lock Holding Method, 62.94mm OAL x 19.99mm OAW x 24.99mm OAH
Item #: 09226556
Brand: Iscar
Model #: 3602046
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Isoturn |
| Cutting Direction | Right Hand |
| Toolholder Style Compatibility | PCLN |
| Insert Style Compatibility | CN.. |
| Insert Holding Method | Lever Lock |
| Overall Length (mm) | 62.94 |
| Overall Length (Decimal Inch) | 2.4780 |
| Overall Width (mm) | 19.99 |
| Overall Width (Decimal Inch) | 0.7870 |
| Overall Height (mm) | 24.99 |
| Overall Height (Decimal Inch) | 0.9840 |
| Complete Insert Compatibility | CNGA 431T; CNGA 432E; CNGA 432T; CNGA 433T; CNGA 434T; CNGG 430-PP; CNMA 431; CNMA 432; CNMA 432F; CNMA 433; CNMA 434; CNMG 431-GN; CNMG 431-NF; CNMG 431-PP; CNMG 432-GN; CNMG 432-NF; CNMG 432-PP; CNMG 433-GN; CNMG 433-PP; CNMG 543-GN; CNMG 544-GN |
