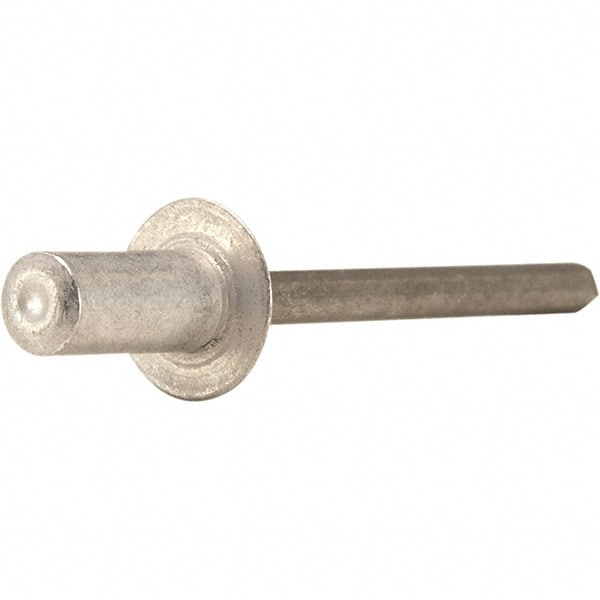

STANLEY Engineered Fastening - Size 4 Dome Head Aluminum Closed End Blind Rivet - Aluminum Mandrel, 0.063" to 1/8" Grip, 1/8" Head Diam, 0.129" to 0.133" Hole Diam,
Item #: 09238205
Brand: STANLEY Engineered Fastening
Model #: POPAD42AH
Exact Tooling IR#: 04
Features and Benefits
Dome head types have domed, cylindrical heads with low profiles. They are commonly used for their large bearing surface and versatility.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| Type | Closed End |
| Head Type | Dome |
| Size Code | 4 |
| Rivet Material | Aluminum |
| Mandrel Material | Aluminum |
| Minimum Grip (Decimal Inch) | 0.0630 |
| Maximum Grip (Inch) | 1/8 |
| Head Diameter (Inch) | 1/8 |
| Minimum Hole Diameter (Decimal Inch) | 0.1290 |
| Maximum Hole Diameter (Decimal Inch) | 0.1330 |
| Rivet Material Grade | 1100 |
| Mandrel Material Grade | 7178 |
| Shear Strength (Lb.) | 105 |
| Tensile Strength (Lb.) | 150 |
| Rivet Finish/Coating | Plain/Uncoated (Rivet) |
