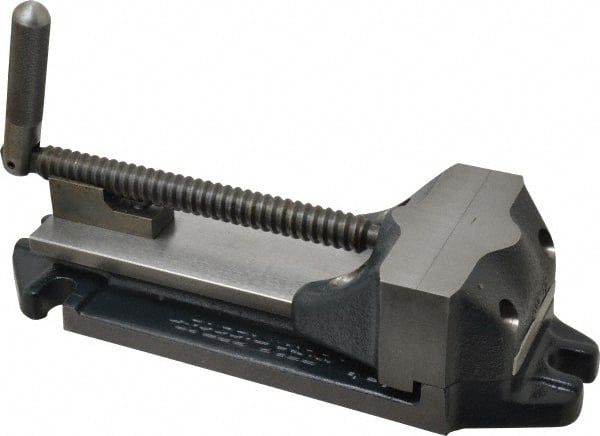

Cardinal Tool - 4" Jaw Opening Capacity x 1-1/2" Throat Depth, Horizontal Drill Press Vise - 4" Wide Jaw, Stationary Base, Rapid Action, 11-1/2" OAL x 2-7/8" Overall Height, Steel
Item #: 09240284
Brand: Cardinal Tool
Model #: 4-B
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Stationary or fixed vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Rapid action spindles have a quick-action mechanism or a split nut design to rapidly open, close or clamp for repetitive operations.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 4 |
| Jaw Opening Capacity (Inch) | 4 |
| Jaw Opening Capacity (Decimal Inch) | 4.0000 |
| Throat Depth (Inch) | 1-1/2 |
| Throat Depth (Decimal Inch) | 1.5000 |
| Orientation Type | Horizontal |
| Base Motion Type | Stationary |
| Spindle Operation Type | Rapid Action |
| Overall Length (Inch) | 11-1/2 |
| Overall Height (Inch) | 2-7/8 |
| Vise Material | Steel |
| Model Number | 4-B |
