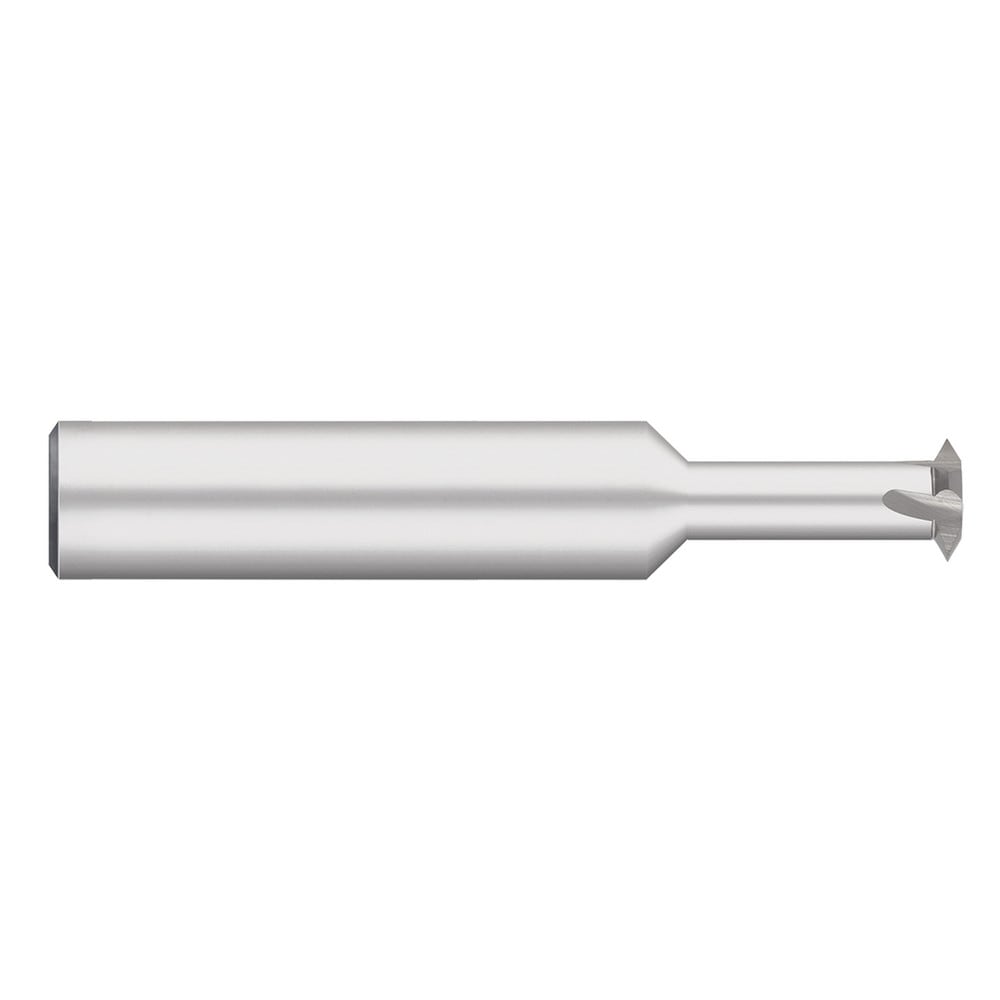

Single Profile Thread Mills; Maximum Threads Per Inch: 56; Minimum Pitch (Decimal Inch): 0.0417; Minimum Pitch (mm): 0.04; Minimum Threads Per Inch: 24; Maximum Pitch (Decimal Inch): 0.0179; Material: Solid Carbide; Thread Type: Internal, External
Item #: 78698636
Brand: Titan USA
Model #: TC82009
Product Specifications
| Maximum Threads Per Inch | 56 |
| Minimum Pitch (Decimal Inch) | 0.0417 |
| Minimum Pitch (mm) | 0.04 |
| Minimum Threads Per Inch | 24 |
| Maximum Pitch (Decimal Inch) | 0.0179 |
| Material | Solid Carbide |
| Thread Type | Internal; External |
| Thread Size | #10 |
| Thread Depth (Decimal Inch) | 0.6250 |
| Shank Diameter (mm) | 3.5000 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Cutting Diameter (mm) | 3.50 |
| Cutting Diameter (Decimal Inch) | 0.1380 |
| Length of Cut (Inch) | 5/8 |
| Minimum Nominal Diameter (Inch) | #1 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Neck Diameter (Decimal Inch) | 0.0750 |
| Series | Thread Mills - Single-Form - UN Threads |
| Number Of Flutes | 4 |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6250 |
| Coating/Finish | Bright/Uncoated |
| UNSPSC Code | 23242117 |
| Country of Origin | UNITED STATES |
