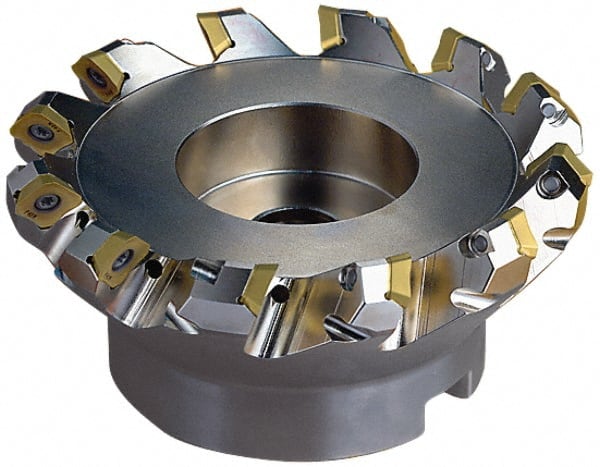

Seco - 112mm Cut Diam, 32mm Arbor Hole, 6mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 7 Inserts, SE.X 1204 Insert, Right Hand Cut, 7 Flutes, Through Coolant, Series R220.53
Item #: 09293176
Brand: Seco
Model #: 07877
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 112.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | SE.X 1204 |
| Series | R220.53 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | R220.53 |
| Number of Flutes | 7 |
| Keyway Width (mm) | 14.40 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
