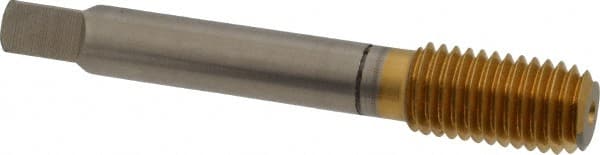

Balax - M14x2.00 Metric Coarse D14 Thread Limit Bottoming Thread Forming Tap - High Speed Steel, TiN Finish, 3-19/32" OAL, 1" Thread Length, Right Hand Thread, Series BXMB
Item #: 09330903
Brand: Balax
Model #: 19154T
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M14x2.00 |
| Thread Limit | D14 |
| Chamfer | Bottoming |
| Finish/Coating | TiN |
| Material | High Speed Steel |
| Overall Length (Inch) | 3-19/32 |
| Thread Standard | Metric Coarse |
| Thread Length (Inch) | 1 |
| Series/List | BXMB |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.4290 |
| Square Length (Inch) | 1/2 |
