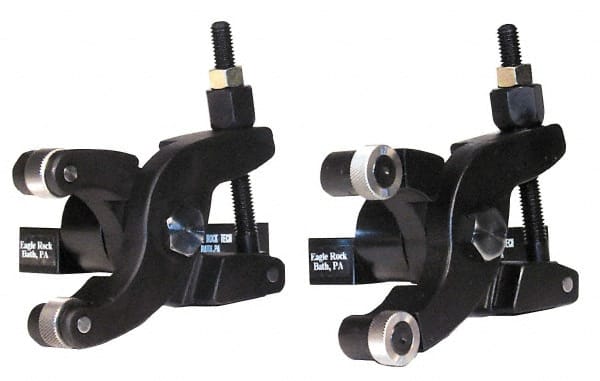

Knurlcraft - 7 Inch Overall Length x 3 Inch Overall Width, 2-1/8 Inch Capacity, Left Hand Cut, Scissor and Straddle Type Knurler - 5 Inch Shank Length x 3/4 Inch Shank Width x 3/4 Inch Shank Height, Square Shank, L Series
Item #: 09331059
Brand: Knurlcraft
Model #: K1-44-21-0750LL
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Capacity (Decimal Inch) | 2.1250 |
| Maximum Capacity (Inch) | 2-1/8 |
| Minimum Capacity (Decimal Inch) | 0.0000 |
| Minimum Capacity (Inch) | 0 |
| Cutting Direction | Left Hand |
| Knurl Diameter (mm) | 20.00 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Length (Decimal Inch) | 5.00 |
| Knurl Face Width (mm) | 8.00 |
| Knurl Hole Diameter (mm) | 10.00-12.00 |
| Number of Knurls Required | 2 |
| Knurl Series | L |
| Includes Knurl Wheels | Yes |
| Knurl Patterns Included | Diamond; Left-Hand Diagonal; Right-Hand Diagonal |
| Shank Shape | Square |
| Overall Length (Decimal Inch) | 7.0000 |
| Overall Width (Decimal Inch) | 3.0000 |
| Head Length (Inch) | 5-1/2 |
| Head Width (Inch) | 1 |
| Shank Height (Inch) | 3/4 |
