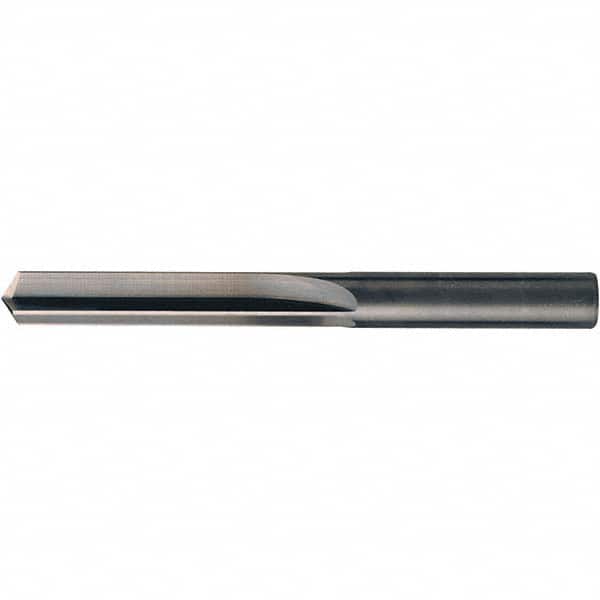

Chicago-Latrobe - #55, 1.32mm, 140° Point, Solid Carbide Straight Flute Drill Bit
Item #: 57637837
Brand: Chicago-Latrobe
Model #: 78555
Features and Benefits
Straight flute drills are used for drilling holes in hardened and high strength steels over 50 HRC. The straight flute allows for deep hole drilling.
Solid carbide provides better rigidity than High Speed Steel (HSS). It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Drill Bit Type | Straight-Flute Drill Bit |
| Drill Point Angle | 140 |
| Drill Bit Size (Wire) | #55 |
| Drill Bit Size (mm) | 1.32 |
| Drill Bit Size (Decimal) | 0.0520 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Bright |
| Overall Length (mm) | 38.10 |
| Overall Length (Decimal Inch) | 1.5000 |
| Through Coolant | No |
| Flute Length (mm) | 12.70 |
| Flute Length (Decimal Inch) | 0.5000 |
| Shank Diameter (mm) | 1.32 |
| Shank Diameter (Decimal Inch) | 0.0520 |
| Number of Flutes | 2 |
| Point Type | Standard |
| Shank Length (mm) | 25.40 |
| Shank Length (Decimal Inch) | 1.0000 |
| Cutting Direction | Right Hand |
| Material Grade | Submicron |
| Series/List | 769 |
