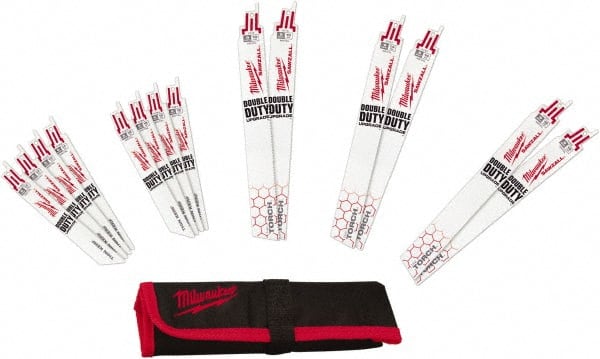

Milwaukee Tool - 14 Piece, 6" to 9" Long x 0.035" Thick, Bi-Metal Reciprocating Saw Blade Set - Straight Profile, 10 to 18 Teeth per Inch, Toothed Edge
Item #: 09351628
Brand: Milwaukee Tool
Model #: 49-22-1131
Exact Tooling IR#: 04
Features and Benefits
Bi-metal blades feature a toothed edge made from high speed steel (HSS) attached to a flexible steel backing through an electron-beam welding process. This configuration results in a blade that makes precise cuts while resisting breakage. They are used on ferrous and nonferrous metals.
Straight-backed blades are used for cutting straight edges.
The cutting surface of a toothed edge is composed of a row of pointed teeth. Common tooth variations include the number of teeth per inch and pitch pattern. They are used on ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Blade Material | Bi-Metal |
| Minimum Blade Length (Inch) | 6 |
| Maximum Blade Length (Inch) | 9 |
| Minimum Blade Thickness (Decimal Inch) | 0.04 |
| Maximum Blade Thickness (Decimal Inch) | 0.04 |
| Profile Shape | Straight |
| Maximum Teeth Per Inch | 18 |
| Minimum Teeth Per Inch | 10 |
| Minimum Blade Width (Inch) | 3/4 |
| Maximum Blade Width (Inch) | 3/4 |
| Cutting Edge Style | Toothed Edge |
| Number of Pieces | 14 |
| Teeth Per Inch | (2) 10; (6) 14; (6) 18 |
| Blade Length (Inch) | (6) 9; (8) 6 |
| Blade Thickness (Decimal Inch) | 0.0350 |
| Blade Width (Inch) | 3/4 |
| Pitch Pattern | Constant |
