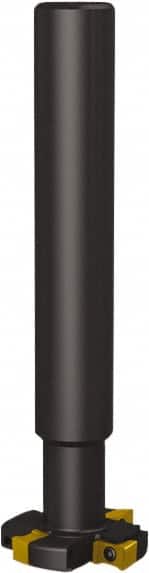

Seco - Shank Connection, 1/2" Cutting Width, 7/8" Depth of Cut, 3" Cutter Diam, 4 Tooth Indexable Slotting Cutter - 1-1/4" Shank Diam, R335.18 Toolholder, LNK.. 08.. Insert, Right Hand Cutting Direction
Item #: 09351859
Brand: Seco
Model #: 21526
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Cutting Width (Decimal Inch) | 0.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.8740 |
| Cutter Diameter (Decimal Inch) | 3.0000 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 4 |
| Toolholder Style | R335.18 |
| Series | R335.19 |
| Insert Style | LNK.. 08.. |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 10500 |
| Minimum Cutting Width (Decimal Inch) | 0.5000 |
| Maximum Cutting Width (Decimal Inch) | 0.5000 |
| Radius | No |
| Shank Length (Decimal Inch) | 6.2500 |
| Weldon Flat | No |
| Complete Insert Compatibility1 | LNKT 080504PPN-E05; LNKT 080504PPTN-M06; LNKT 080508PPN-E05; LNKT 080508PPTN-M06; LNKT 080516PPN-E05; LNKT 080516PPTN-M06; LNKT 080520PPN-E05; LNKT 080520PPTN-M06; LNKT 080524PPN-E05; LNKT 080524PPTN-M06; LNKT 080531PPN-E05; LNKT 080531PPTN-M06; LNKT 0805 |
