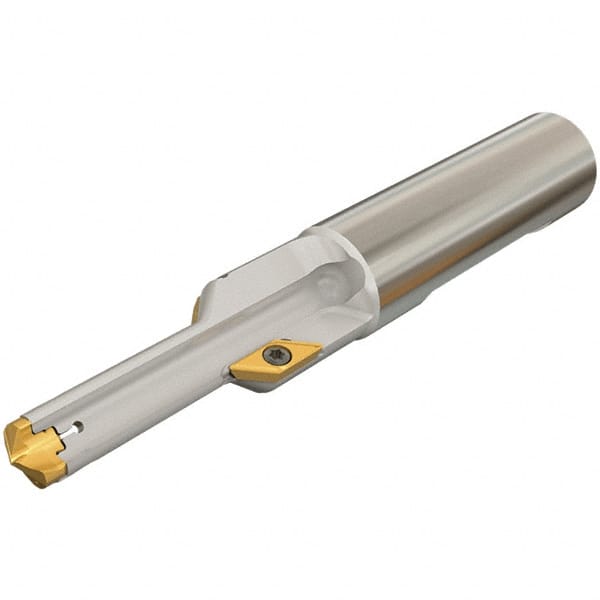

Iscar - 0.681 to 0.708" Diam, 1.4" Max Depth, 1" Shank Diam, 4.4" OAL, Replaceable Tip Drill - AOMT, IDI-SG, IDI-SK Insert, DCT Toolholder, Series ChamDrill
Item #: 09453333
Brand: Iscar
Model #: 3200994
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (Decimal Inch) | 0.6810 |
| Maximum Drill Diameter (Decimal Inch) | 0.7080 |
| Maximum Drill Depth (Decimal Inch) | 1.4000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | AOMT; IDI-SG; IDI-SK |
| Toolholder Style | DCT |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 2.2000 |
| Overall Length (Decimal Inch) | 4.4000 |
| Shank Length (Decimal Inch) | 2.2000 |
