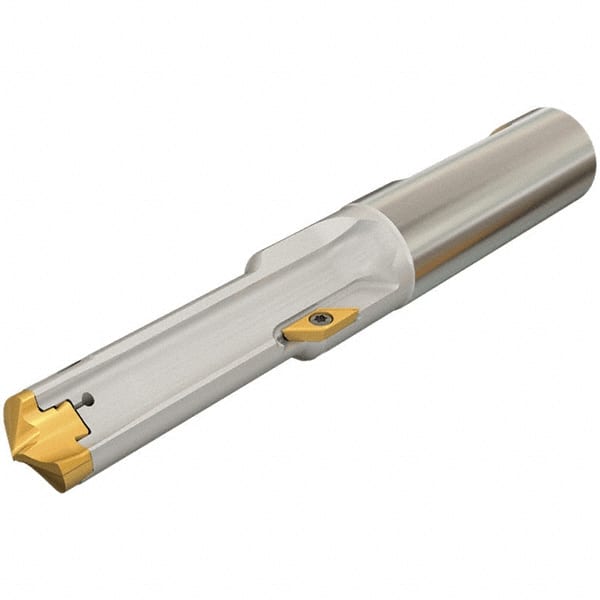

Iscar - 10.01 to 11mm Diam, 30.02mm Max Depth, 14.01mm Shank Diam, 97.07mm OAL, Replaceable Tip Drill - AOMT, IDI-SG, IDI-SK Insert, DCT Toolholder, Series ChamDrill
Item #: 09453416
Brand: Iscar
Model #: 3201005
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (mm) | 10.01 |
| Minimum Drill Diameter (Decimal Inch) | 0.3940 |
| Maximum Drill Diameter (mm) | 11.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.4330 |
| Maximum Drill Depth (Decimal Inch) | 1.1820 |
| Maximum Drill Depth (mm) | 30.02 |
| Shank Diameter (mm) | 14.01 |
| Shank Diameter (Decimal Inch) | 0.5516 |
| Insert Style | AOMT; IDI-SG; IDI-SK |
| Toolholder Style | DCT |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 52.04 |
| Body Length (Decimal Inch) | 2.0488 |
| Overall Length (mm) | 97.07 |
| Overall Length (Decimal Inch) | 3.8218 |
| Shank Length (mm) | 45.03 |
| Shank Length (Decimal Inch) | 1.7730 |
