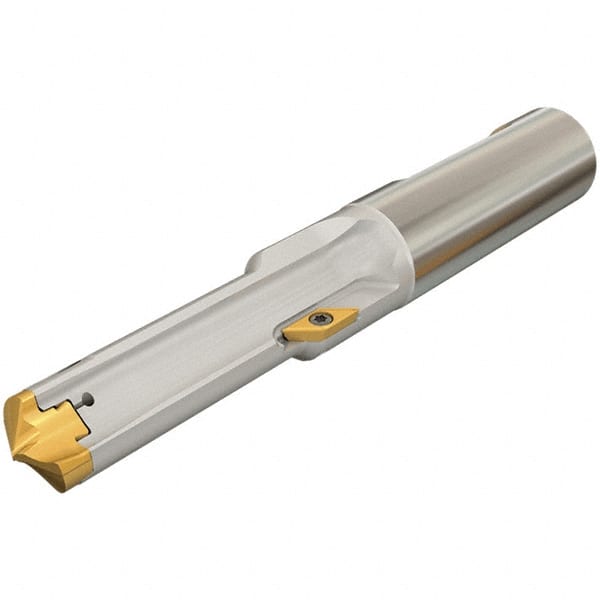

Iscar - 21.02 to 22.01mm Diam, 48.04mm Max Depth, 25.02mm Shank Diam, 125.1mm OAL, Replaceable Tip Drill - AOMT, IDI-SG, IDI-SK Insert, DCT Toolholder, Series ChamDrill
Item #: 09453457
Brand: Iscar
Model #: 3201009
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (mm) | 21.02 |
| Minimum Drill Diameter (Decimal Inch) | 0.8274 |
| Maximum Drill Diameter (mm) | 22.01 |
| Maximum Drill Diameter (Decimal Inch) | 0.8664 |
| Maximum Drill Depth (Decimal Inch) | 1.8912 |
| Maximum Drill Depth (mm) | 48.04 |
| Shank Diameter (mm) | 25.02 |
| Shank Diameter (Decimal Inch) | 0.9850 |
| Insert Style | AOMT; IDI-SG; IDI-SK |
| Toolholder Style | DCT |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 69.05 |
| Body Length (Decimal Inch) | 2.7186 |
| Overall Length (mm) | 125.10 |
| Overall Length (Decimal Inch) | 4.9250 |
| Shank Length (mm) | 56.04 |
| Shank Length (Decimal Inch) | 2.2064 |
