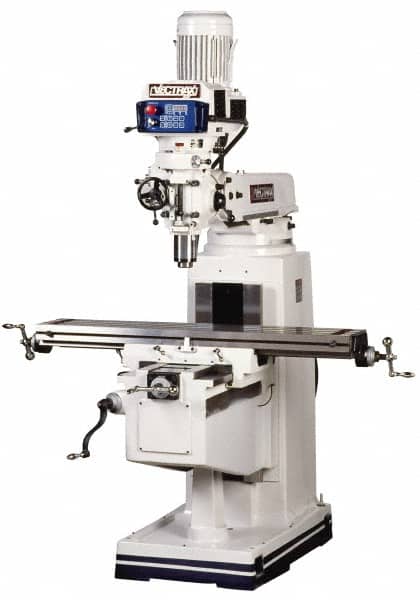

Vectrax - 10" Table Width x 54" Table Length, Electronic Variable Speed Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 5 hp
Item #: 09538752
Brand: Vectrax
Model #: GS20FB
Exact Tooling IR#: 04
Features and Benefits
Electronic Variable Speed control (EVS, are similar to variable speed pulleys, but the speed is controlled electronically rather than manually by turning a dial. They feature several speeds within a specified speed range.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Electronic Variable Speed |
| Table Length (Inch) | 54 |
| Table Width (Inch) | 10 |
| Phase | 3 |
| Longitudinal Travel (Decimal Inch) | 32.0000 |
| Cross Travel (Decimal Inch) | 16.5000 |
| Knee Travel (Decimal Inch) | 17.5000 |
| Number of Spindle Speeds | Variable |
| Maximum Spindle Speed (RPM) | 5000.00 |
| Minimum Spindle Speed (RPM) | 50.00 |
| Spindle Taper Size | R8 |
| Horsepower (HP) | 5.00 |
| Voltage | 220 |
