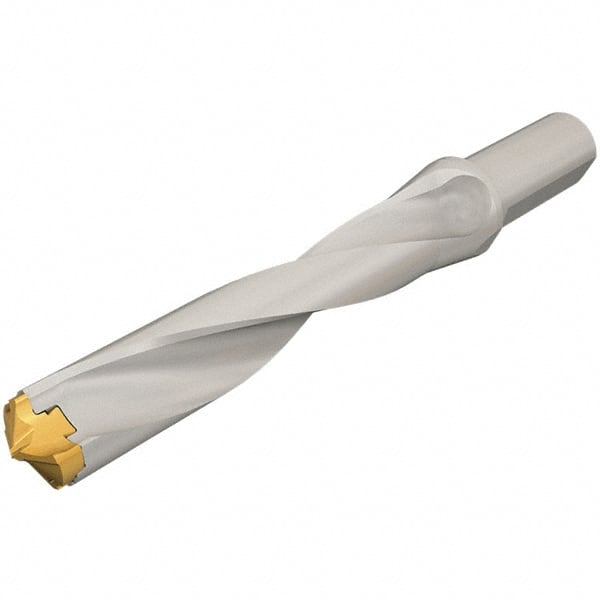

Iscar - 14.5 to 14.9mm Diam, 5xD, 72mm Max Depth, 16mm Shank Diam, 140.2mm OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, 14 Seat Size, DCM Toolholder, Series ChamDrill
Item #: 09597360
Brand: Iscar
Model #: 3200474
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (mm) | 14.50 |
| Maximum Drill Diameter (mm) | 14.90 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 72.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | IDI-SG; IDI-SK |
| Insert Seat Size | 14 |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 92.20 |
| Overall Length (mm) | 140.20 |
| Shank Length (mm) | 48.00 |
