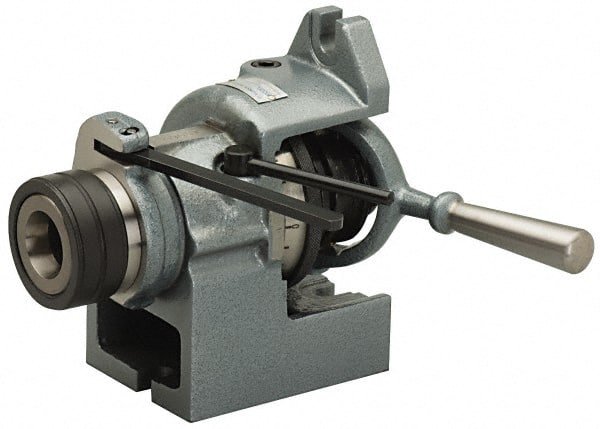

Yuasa - 5C Compatible, 24 Increment, Horizontal & Vertical Standard Collet Indexer - 4" High Center, 1-1/8" Max Collet Capacity, 4.02" Wide x 5.43" Deep Base, 7.76" Overall Height, Manual Operation
Item #: 09651027
Brand: Yuasa
Model #: 550-004
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Standard Collet Indexer |
| Orientation Type | Horizontal/Vertical |
| Number of Indexing Increments | 24 |
| Collet Series Compatibility | 5C |
| Centerline Height (Inch) | 4 |
| Maximum Collet Capacity (Inch) | 1-1/8 |
| Indexing Accuracy (sec.) | 30.00 |
| Squareness - Base to Face (Decimal Inch) | 0.000800 |
| Squareness - Base to Face (mm) | 0.02 |
| Concentricity of Spindle (Decimal Inch) | 0.0002 |
| Concentricity of Spindle (mm) | 0.0051 |
| Spindle Runout (mm) | 0.01 |
| Spindle Runout (Decimal Inch) | 0.000400 |
| Operation Type | Manual |
| Base Width (mm) | 102.11 |
| Base Width (Decimal Inch) | 4.0200 |
| Base Depth (mm) | 137.92 |
| Base Depth (Decimal Inch) | 5.4300 |
| Overall Height (mm) | 197.10 |
| Overall Height (Decimal Inch) | 7.7600 |
| Centerline Height (mm) | 101.60 |
