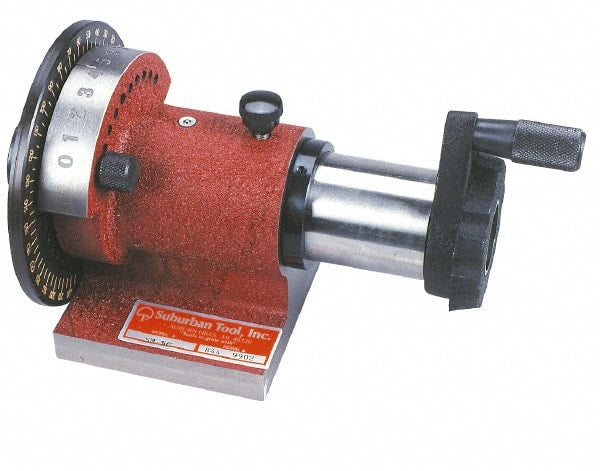

Suburban Tool - 5C Compatible, 36 Increment, Horizontal Spin Collet Indexer - 2-3/4" High Center, 1-1/8" Max Collet Capacity, 4-3/8" Wide x 9-11/16" Deep Base, 5-1/4" Overall Height, Manual Operation
Item #: 09672056
Brand: Suburban Tool
Model #: SM5C
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Spin-Indexer |
| Orientation Type | Horizontal |
| Number of Indexing Increments | 36 |
| Collet Series Compatibility | 5C |
| Centerline Height (Inch) | 2-3/4 |
| Maximum Collet Capacity (Inch) | 1-1/8 |
| Squareness - Base to Face (Decimal Inch) | 0.000200 |
| Spindle Runout (Decimal Inch) | 0.000500 |
| Through Hole Size (Inch) | 1-1/4 |
| Operation Type | Manual |
| Base Width (Inch) | 4-3/8 |
| Base Depth (Inch) | 9-11/16 |
| Overall Height (Inch) | 5-1/4 |
