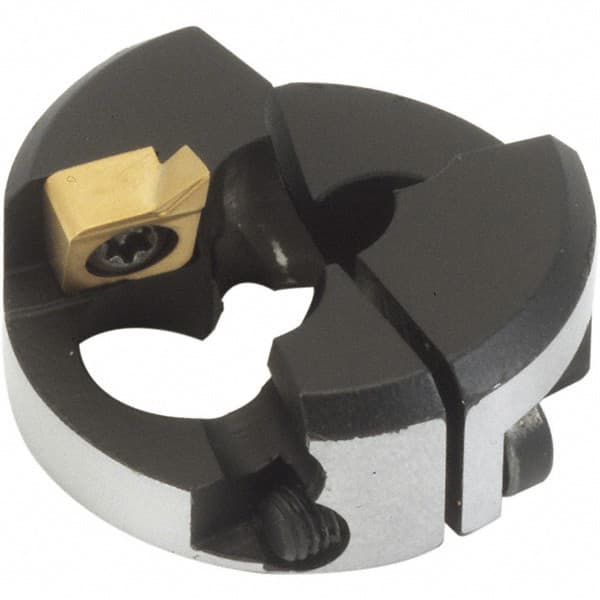

Iscar - Series ChamDrill, 0.551" ID, 41mm Overall Diam, 15.5mm OAL Drilling Chamfer Ring - XOGX-DT Insert, 45° Chamfer, 1 Insert
Item #: 09672874
Brand: Iscar
Model #: 4304727
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Inside Diameter (Decimal Inch) | 0.5510 |
| Overall Diameter (mm) | 41.00 |
| Overall Diameter (Decimal Inch) | 1.6142 |
| Overall Length (mm) | 15.50 |
| Overall Length (Decimal Inch) | 0.6102 |
| Insert Style | XOGX-DT |
| Chamfer Angle | 45 |
| Series Compatibility | DCM-3D, DCM-5D |
| Number of Chamfer Ring Inserts | 1 |
