Boring Inserts; Insert Style: TPGT; Insert Size Code: 5.521; Insert Material: Carbide; Material Grade: M20, M30, P30, P20; Manufacturer Grade: SH725; Inscribed Circle (Inch): 11/64
Item #: 20876736
Brand: Tungaloy
Model #: 6737304
Product Specifications

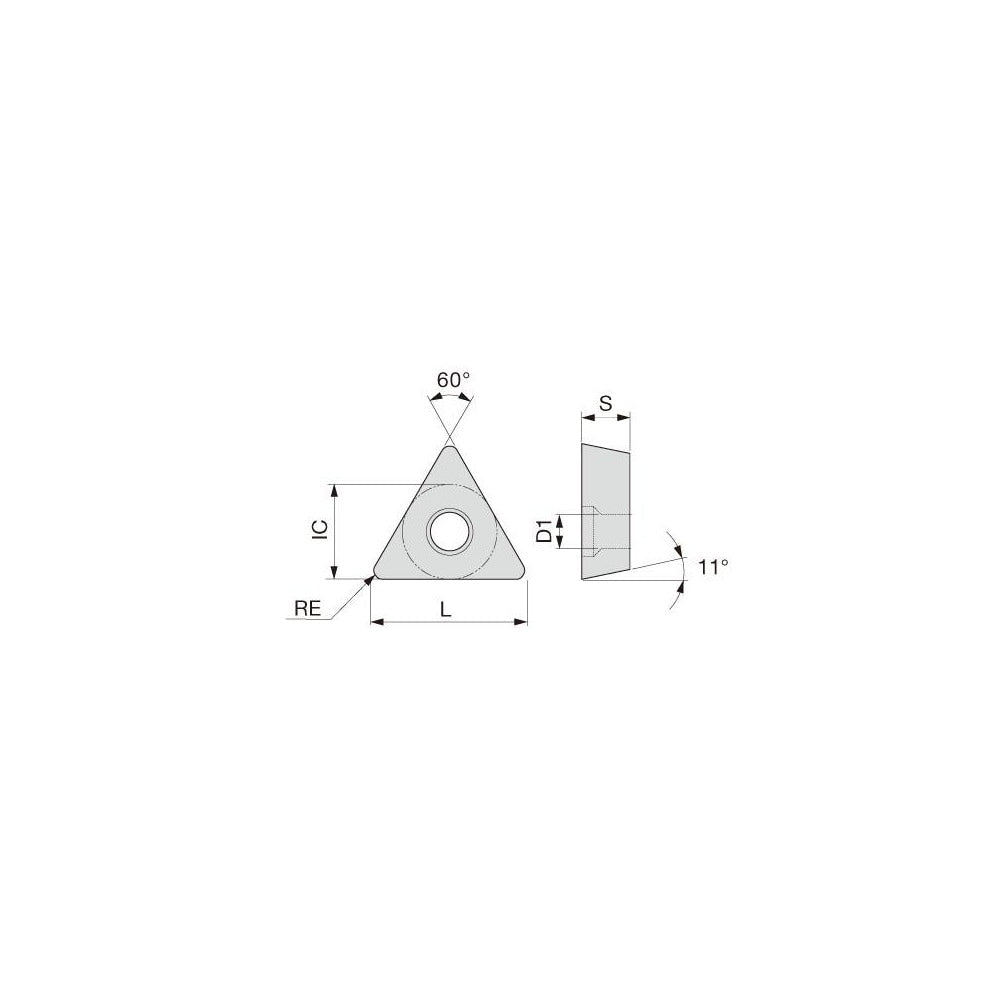

| Insert Style | TPGT |
| Insert Size Code | 5.521 |
| Insert Material | Carbide |
| Material Grade | M20; M30; P30; P20 |
| Manufacturer Grade | SH725 |
| Inscribed Circle (Inch) | 11/64 |
| Inscribed Circle (Decimal Inch) | 0.1719 |
| Hole Diameter (Decimal Inch) | 0.1020 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (Inch) | 1/64 |
| Relief Angle | 11 |
| Rake | Positive |
| Chipbreaker | JS |
| Series | TPGT-JS |
| Coating Process | PVD |
| Included Angle | 60 |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Iso Code | TPGT070104F-JS SH725 |
| Standards | ISO; ANSI |
| Rake Angle | 10 |
| Manufacturers Catalog Number | 6737304 |
| Length (Decimal Inch - 4 Decimals) | 0.2990 |
| Width (Decimal Inch - 4 Decimals) | 0.299 |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23242105 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
