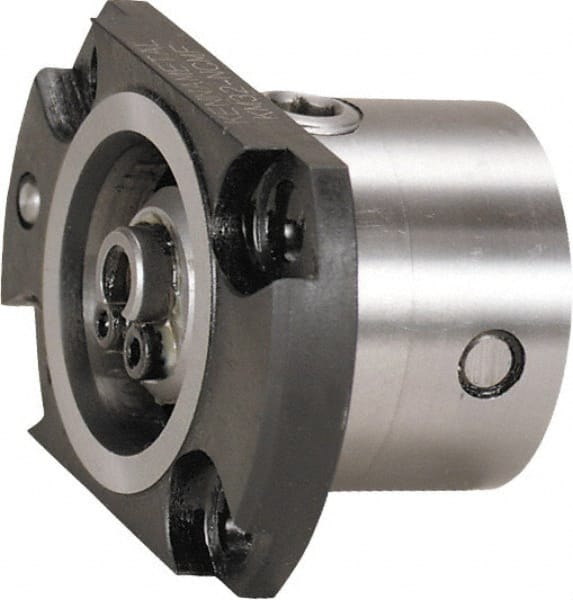

Kennametal - Neutral Cut, KM32 Modular Connection, Adapter/Mount Lathe Modular Clamping Unit - 32mm Square Shank Diam, 1.255" OAL, Through Coolant, Series NCM-F Flange Mount Standard Length
Item #: 09730631
Brand: Kennametal
Model #: 1144814
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Clamping Unit Type | Adapter/Mount |
| Series Code | NCM-F Flange Mount Standard Length |
| Connection Size | KM32 |
| Cutting Direction | Neutral |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Through Coolant | Yes |
| Head Height (mm) | 54.10 |
| Head Height (Decimal Inch) | 2.1300 |
| Overall Length (mm) | 31.88 |
| Overall Length (Decimal Inch) | 1.2550 |
| Head Length (Decimal Inch) | 0.2950 |
| Head Length (mm) | 7.49 |
| Shank Length (mm) | 24.38 |
| Shank Length (Decimal Inch) | 0.9600 |
