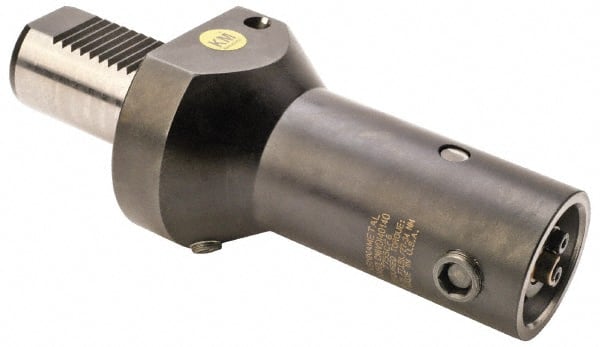

Kennametal - Right Hand Cut, KM63 Modular Connection, Adapter/Mount Lathe Modular Clamping Unit - 59.99mm Square Shank Diam, 10" OAL, Through Coolant, Series RCMI-VDI Axial
Item #: 09731043
Brand: Kennametal
Model #: 1144859
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Clamping Unit Type | Adapter/Mount |
| Series Code | RCMI-VDI Axial |
| Connection Size | KM63 |
| Cutting Direction | Right Hand |
| Shank Diameter (mm) | 59.99 |
| Shank Diameter (Decimal Inch) | 2.3620 |
| Through Coolant | Yes |
| Head Height (mm) | 122.94 |
| Head Height (Decimal Inch) | 4.8400 |
| Overall Length (mm) | 253.98 |
| Overall Length (Decimal Inch) | 9.9990 |
| Head Length (Decimal Inch) | 6.2990 |
| Head Length (mm) | 160.00 |
| Shank Length (mm) | 93.98 |
| Shank Length (Decimal Inch) | 3.7000 |
