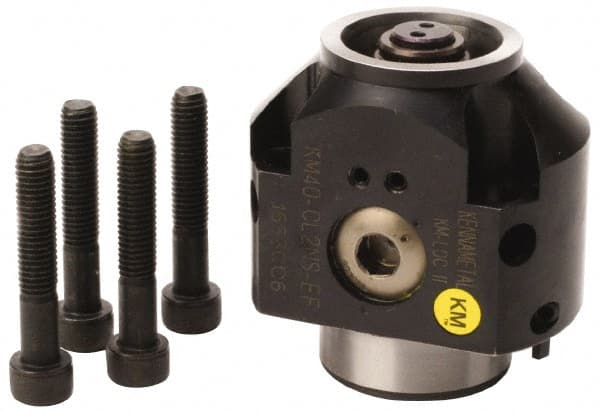

Kennametal - Neutral Cut, KM50 Modular Connection, Adapter/Mount Lathe Modular Clamping Unit - 50.01mm Square Shank Diam, 3.349" OAL, Through Coolant, Series CL2NS-EF Flange Mount Side Access
Item #: 09731803
Brand: Kennametal
Model #: 2044926
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Clamping Unit Type | Adapter/Mount |
| Series Code | CL2NS-EF Flange Mount Side Access |
| Connection Size | KM50 |
| Cutting Direction | Neutral |
| Shank Diameter (mm) | 50.01 |
| Shank Diameter (Decimal Inch) | 1.9690 |
| Through Coolant | Yes |
| Head Height (mm) | 57.91 |
| Head Height (Decimal Inch) | 2.2800 |
| Overall Length (mm) | 85.06 |
| Overall Length (Decimal Inch) | 3.3490 |
| Head Length (Decimal Inch) | 2.5590 |
| Head Length (mm) | 65.00 |
| Shank Length (mm) | 20.07 |
| Shank Length (Decimal Inch) | 0.7900 |
