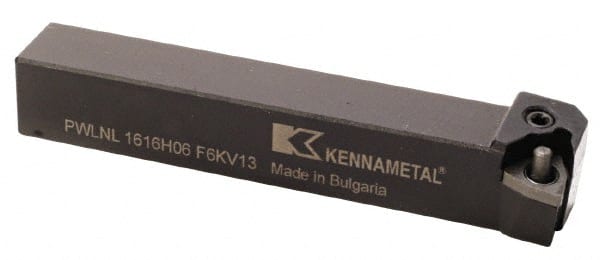

Kennametal - PWLN, Left Hand Cut, 5° Lead Angle, 20mm Shank Height x 20mm Shank Width, Negative Rake Indexable Turning Toolholder - 125mm OAL, WN..0604.. Insert Compatibility, Series Kenlever
Item #: 09836255
Brand: Kennametal
Model #: 1244767
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | PWLN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | Kenlever |
| Lead Angle | 5 |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | WN..0604.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Back of Bar to Cutting Edge (mm) | 25.00 |
| Head Length (mm) | 14.00 |
| Head Length (Decimal Inch) | 0.5512 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
