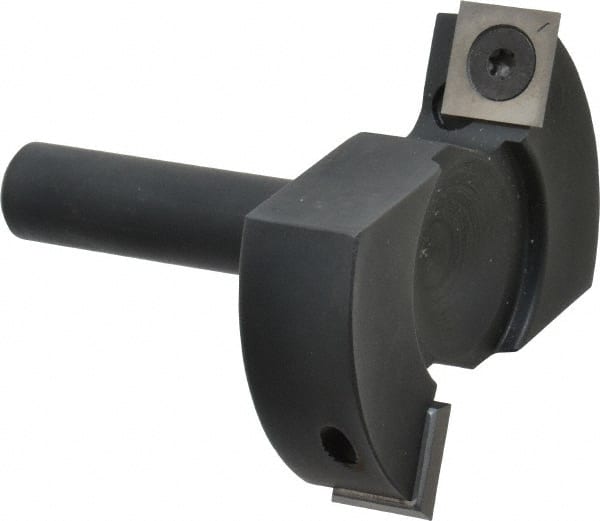

Onsrud - 2-1/2" Cutting Diam, 1/8" Max Depth of Cut, 1/2" Shank Diam, Indexable Spoilboard Surface Insert Cutter - 2 Cutters, Straight Cut, ICK L 142 Insert Style, 2.8" OAL, 2" Shank Length, Right Hand Cut
Item #: 09886730
Brand: Onsrud
Model #: 91-102
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Blade or Insert Cutters | Insert |
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/2 |
| Cutting Type | Straight |
| Number of Inserts or Blades | 2 |
| Insert Style | ICK L 142 |
| Overall Length (Decimal Inch) | 2.8000 |
| Cutting Direction | Right Hand |
| Shank Length (Inch) | 2 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
