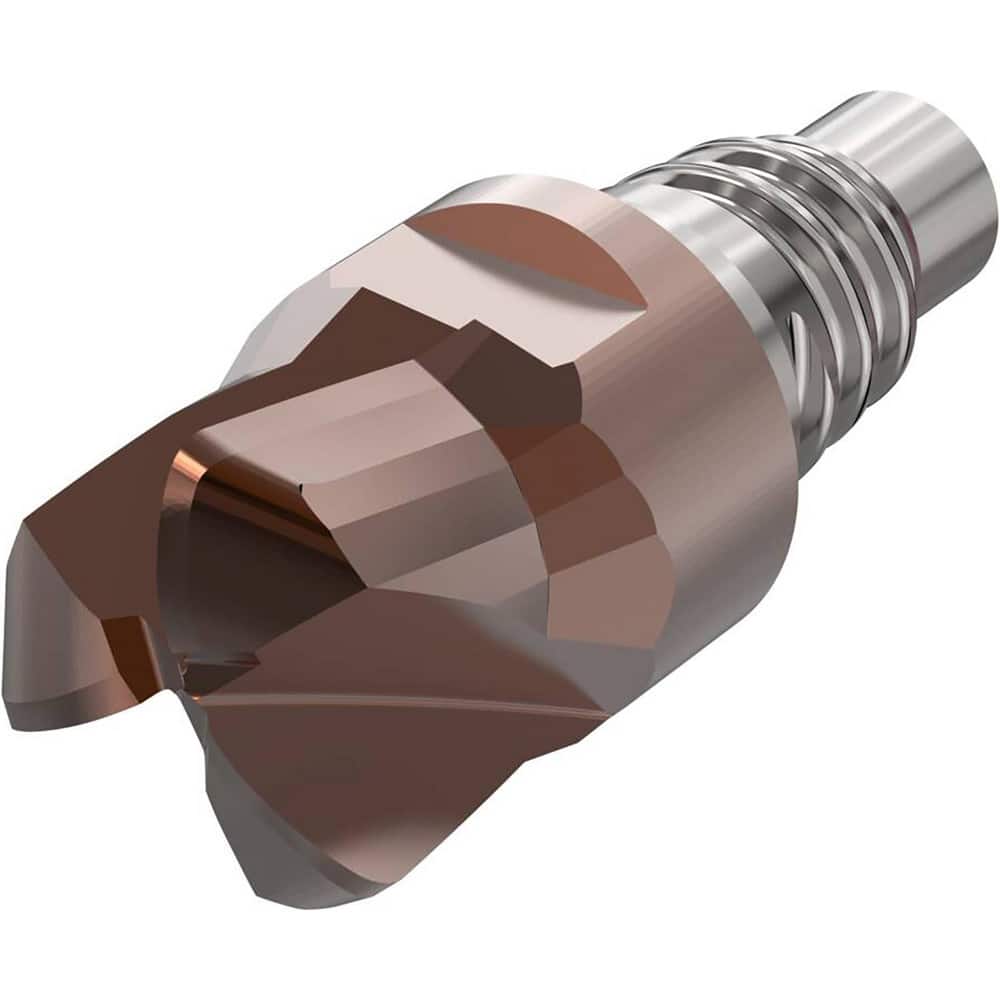

Milling Tip Inserts; Milling Tip Type: High Feed; Milling Tip Style: XHF; Maximum Depth of Cut (Decimal Inch): 0.0177; Cutting Diameter (Decimal Inch): 0.3750; Tool Material: Carbide; Manufacturer Grade: HXT; Chipbreaker: None; Series: XHF780; Coating Pro
Item #: 09942962
Brand: Seco
Model #: 10137960
Product Specifications
| Milling Tip Type | High Feed |
| Milling Tip Style | XHF |
| Maximum Depth of Cut (Decimal Inch) | 0.0177 |
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Tool Material | Carbide |
| Manufacturer Grade | HXT |
| Chipbreaker | None |
| Series | XHF780 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0280 |
| Cutting Width (Decimal Inch) | 0.3750 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; M |
| Lead Angle | 90 |
| Manufacturers Catalog Number | XHF780E10.375D1HZ3 |
| Overall Length (Decimal Inch) | 0.9252 |
| Insert Size | E10 |
| Helix Angle | 0 |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Projection Length (Decimal Inch) | 0.4843 |
| Included Angle Degree | 90 |
| Depth Of Cut | 0.0177 |
| Coating/Finish | HXT |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0177 |
| Number Of Flutes | 3 |
| Length (Decimal Inch - 4 Decimals) | 0.4843 |
