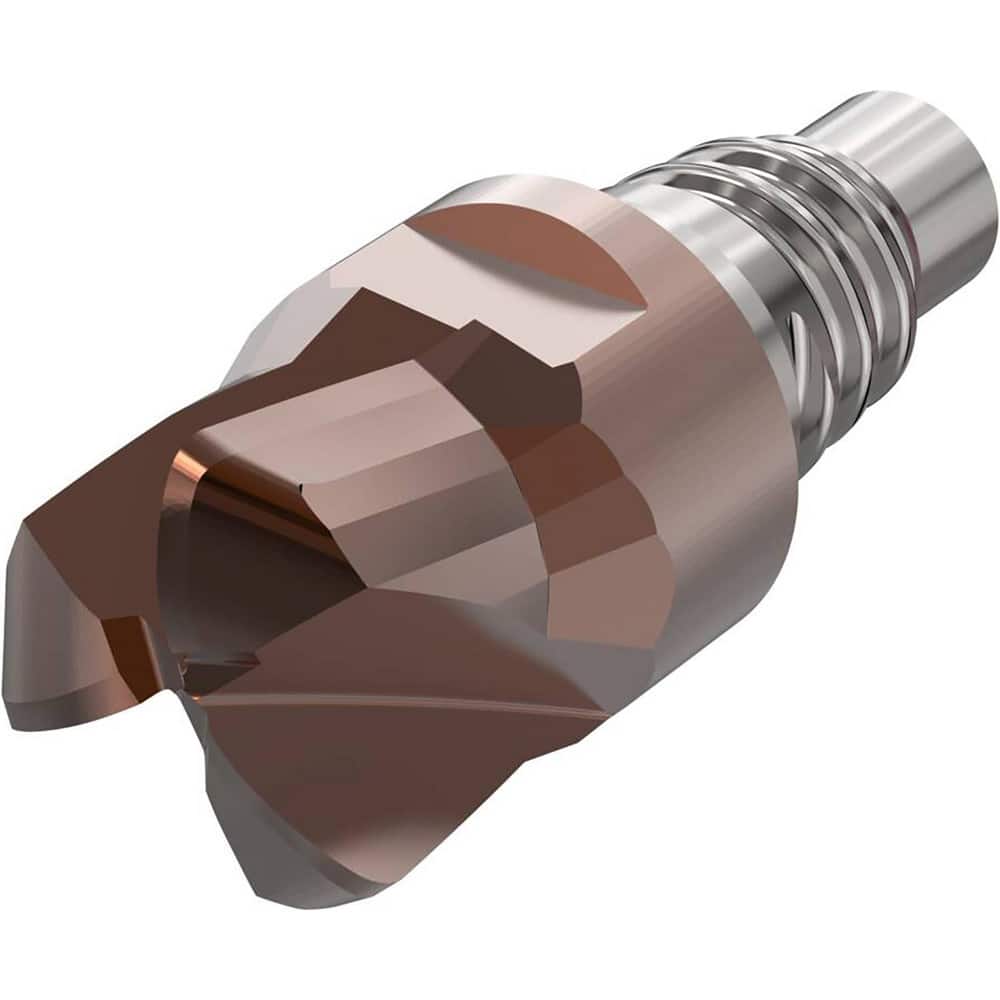

Milling Tip Inserts; Milling Tip Type: High Feed; Milling Tip Style: XHF; Maximum Depth of Cut (mm): 0.45; Cutting Diameter (mm): 10.00; Tool Material: Carbide; Depth of Cut (mm): 0.45; Manufacturer Grade: HXT; Chipbreaker: None; Series: XHF780; Coating P
Item #: 09943085
Brand: Seco
Model #: 10137957
Product Specifications
| Milling Tip Type | High Feed |
| Milling Tip Style | XHF |
| Maximum Depth of Cut (mm) | 0.45 |
| Cutting Diameter (mm) | 10.00 |
| Tool Material | Carbide |
| Depth of Cut (mm) | 0.45 |
| Manufacturer Grade | HXT |
| Chipbreaker | None |
| Series | XHF780 |
| Coating Process | PVD |
| Corner Radius (mm) | 0.80 |
| Cutting Width (mm) | 10.000 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; M |
| Lead Angle | 90 |
| Manufacturers Catalog Number | XHF780E10100D1HZ3 |
| Insert Size | E10 |
| Length of Cut (mm) | 0.4500 |
| Helix Angle | 0 |
| Coolant Through | No |
| Mill Diameter (mm) | 10.00 |
| Overall Length (mm) | 23.5000 |
| Projection Length (Decimal Inch) | 0.4843 |
| Included Angle Degree | 90 |
| Coating/Finish | HXT |
| Number Of Flutes | 3 |
| Length | 12.30 |
