Indexable Boring Bar: S08H SCLCL 06, 11.00 mm Min Bore, 8.00 mm Shank Dia, 95.00° N/A Steel 100.0000″ OAL, Screw Clamping,
Item #: 09968710
Brand: Ceratizit
Model #: 70717008

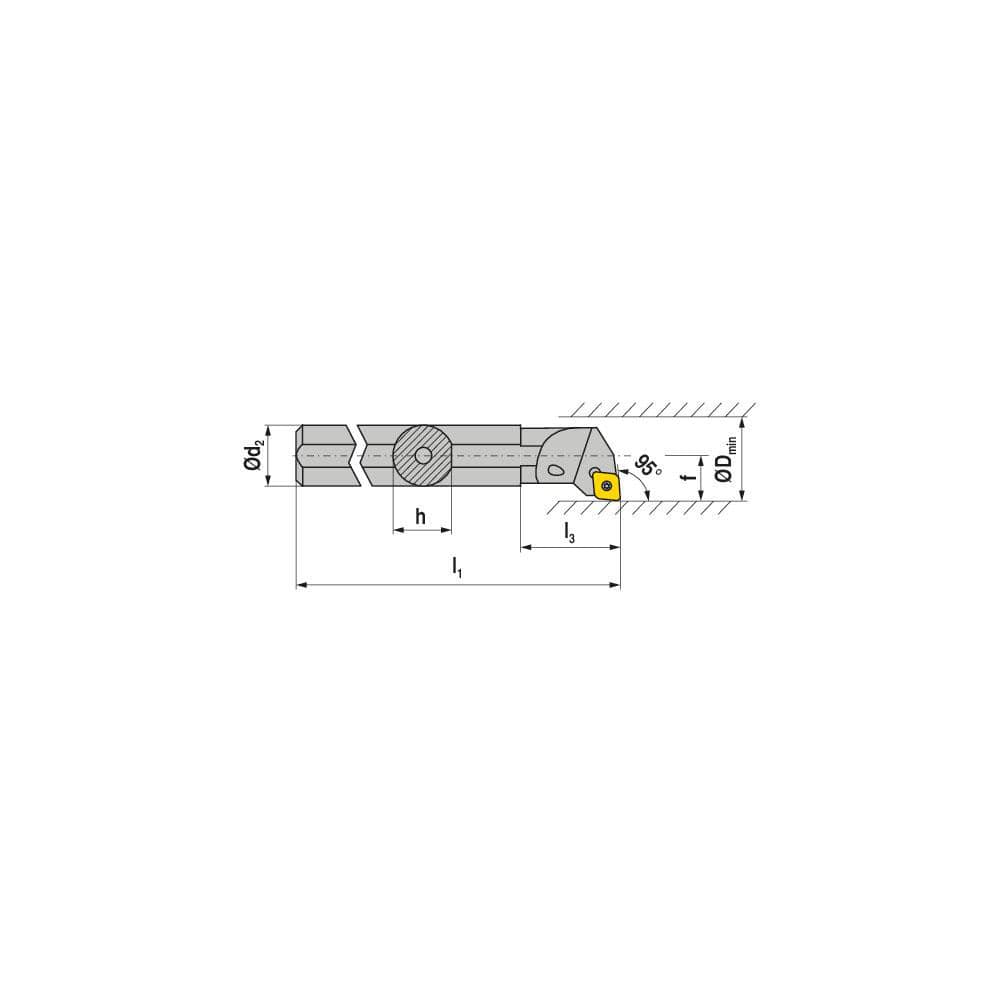

Product Specifications
| Minimum Bore Diameter (mm) | 11.00 |
| Maximum Bore Depth (mm) | 32.00 |
| Toolholder Style | SCLCL |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 8.0000 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Inch) | 8 |
| Overall Length (Decimal Inch) | 100.0000 |
| Overall Length (mm) | 100.00 |
| Overall Length (Inch) | 100 |
| Compatible Insert Size Code | CC..21.5. |
| Insert Holding Method | Screw Clamping |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Left Hand |
| Rake Angle | 7.00 |
| Lead Angle | 95.00 |
| Series | MaxiLock-S |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.0938 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (mm) | 9.00 |
| Center to Cutting Edge (mm) | 5.00 |
| Primary Workpiece Material | Universal |
| Coolant Through | No |
