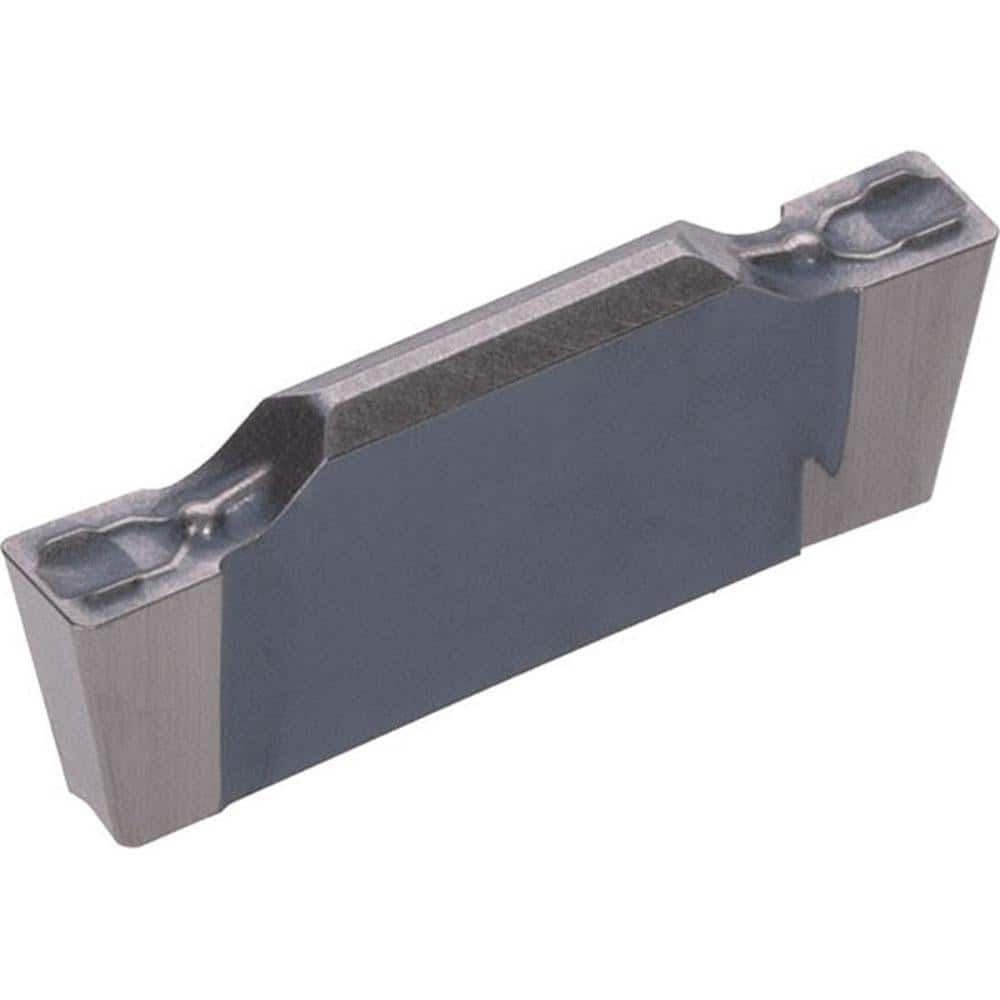

Multi-Directional Turning Insert: T9225, Solid Carbide
Item #: 09995382
Brand: Tungaloy
Model #: 6781379
Product Specifications
| Insert Style | FLEX |
| Insert Size Code | 5 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | T9225 |
| Maximum Cutting Width (Decimal Inch) | 0.1970 |
| Maximum Depth of Cut (Decimal Inch) | 0.7717 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Insert Hand | Right |
| Chipbreaker | EX |
| Series | FLEX |
| Coating Process | CVD |
| Full Radius Insert | No |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Insert Length (Decimal Inch) | 0.7900 |
| Single Or Double End | Double |
| Coating/Finish | Coated |
