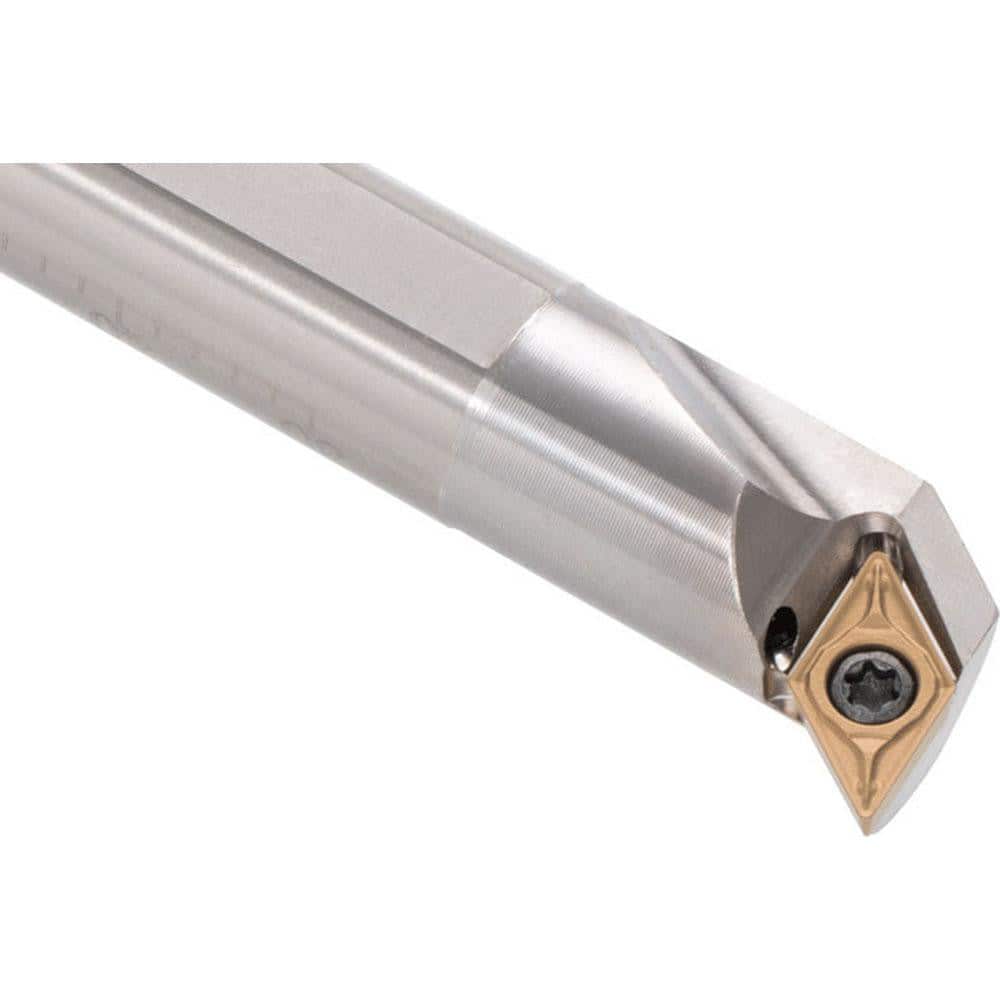

Indexable Boring Bar: A12M-SDUPR07-D180-P, 18.00 mm Min Bore, 12.00 mm Shank Dia, 93.00° N/A Steel 150.0000″ OAL, Screw,
Item #: 09996844
Brand: Tungaloy
Model #: 6762763
Product Specifications
| Minimum Bore Diameter (mm) | 18.00 |
| Maximum Bore Depth (mm) | 48.00 |
| Toolholder Style | SDUP |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 12.0000 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Inch) | 12 |
| Overall Length (Decimal Inch) | 150.0000 |
| Overall Length (mm) | 150.00 |
| Overall Length (Inch) | 150 |
| Compatible Insert Size Code | 21.5 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | 0.00 |
| Lead Angle | 93.00 |
| Series | SDUP |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.0940 |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (mm) | 10.30 |
| Primary Workpiece Material | Universal |
| Coolant Through | Yes |
