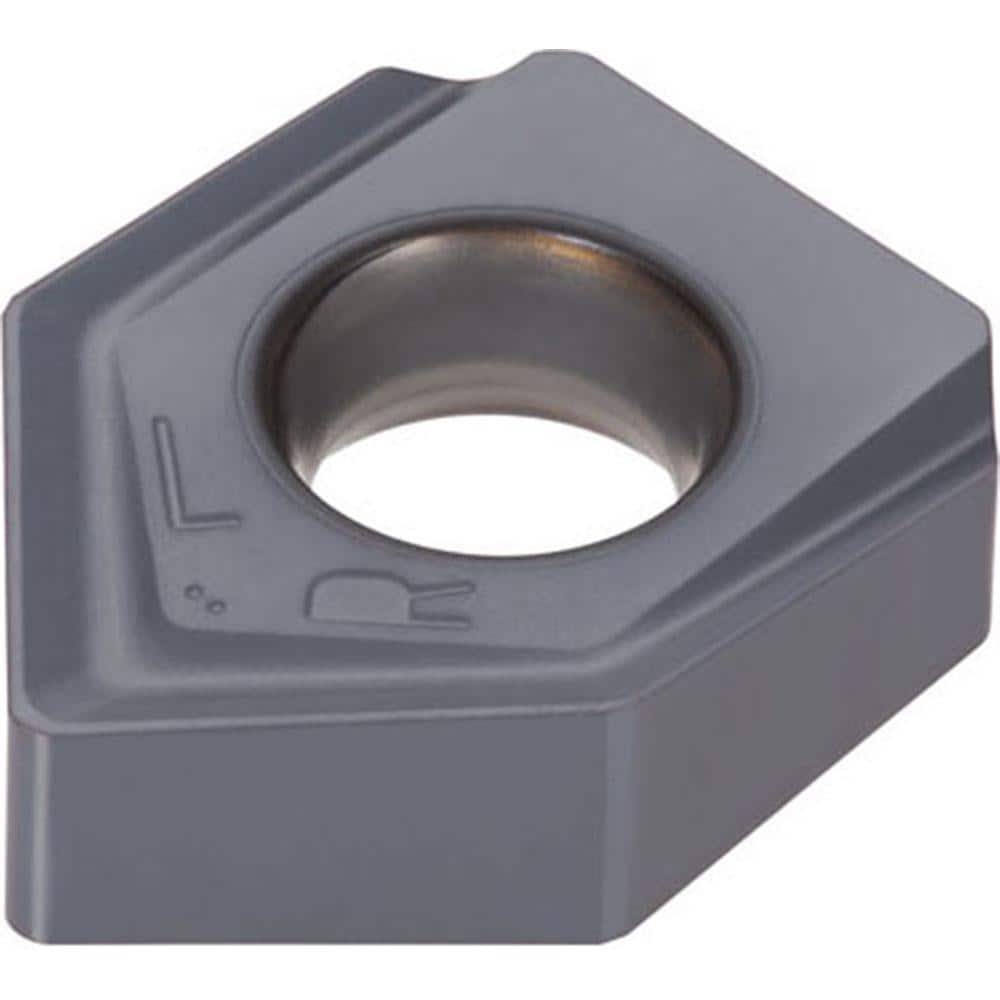

Milling Insert: AH120, Solid Carbide N/A Finish,
Item #: 09999699
Brand: Tungaloy
Model #: 6861813
Product Specifications
| Insert Style | SNHU |
| Insert Size Code | 17 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH120 |
| Inscribed Circle (Decimal Inch) | 0.6810 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Inscribed Circle Range (Decimal Inch) | 0.6000 to 0.7000 |
| Insert Hand | Neutral |
| Series | SNHU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.0160 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4330 |
| Insert Shape | Square |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Superalloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.2560 |
