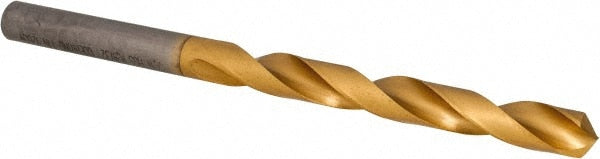

Jobber Drill: Letter K, 118 deg Point, High Speed Steel
Item #: 55355515
Brand: Guhring
Model #: 9006510071400
Product Specifications
| Drill Bit Size (Inch) | 9/32 |
| Drill Bit Size (Letter) | K |
| Drill Bit Size (Decimal Inch) | 0.2812 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | TiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K |
| Shank Diameter (Decimal Inch) | 0.2813 |
| Overall Length (mm) | 109.00 |
| Overall Length (Decimal Inch) | 4.2913 |
| Spiral Type | Regular |
| Flute Length (mm) | 69.00 |
| Flute Length (Decimal Inch) | 2.7165 |
| Series | 651 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 9/32 |
| Shank Diameter (mm) | 7.14 |
| Maximum Drilling Depth (Decimal Inch) | 2.7165 |
| Maximum Drilling Depth (mm) | 69.00 |
| Shank Length (mm) | 40 |
| Shank Length (Decimal Inch) | 1.5748 |
| Drill Bit Diameter Tolerance | +0.000 to -0.022 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Material Grade | M2 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (Inch) | 9/32 |
| Drill Bit Size (Letter) | K |
| Drill Bit Size (Decimal Inch) | 0.2812 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | TiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K |
| Shank Diameter (Decimal Inch) | 0.2813 |
| Overall Length (mm) | 109.00 |
| Overall Length (Decimal Inch) | 4.2913 |
| Spiral Type | Regular |
| Flute Length (mm) | 69.00 |
| Flute Length (Decimal Inch) | 2.7165 |
| Series | 651 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 9/32 |
| Shank Diameter (mm) | 7.14 |
| Maximum Drilling Depth (Decimal Inch) | 2.7165 |
| Maximum Drilling Depth (mm) | 69.00 |
| Shank Length (mm) | 40 |
| Shank Length (Decimal Inch) | 1.5748 |
| Drill Bit Diameter Tolerance | +0.000 to -0.022 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Material Grade | M2 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 55355515 |
| Mfr Part # | 9006510071400 |
| Country of Origin Country of Origin is subject to change | Germany |
