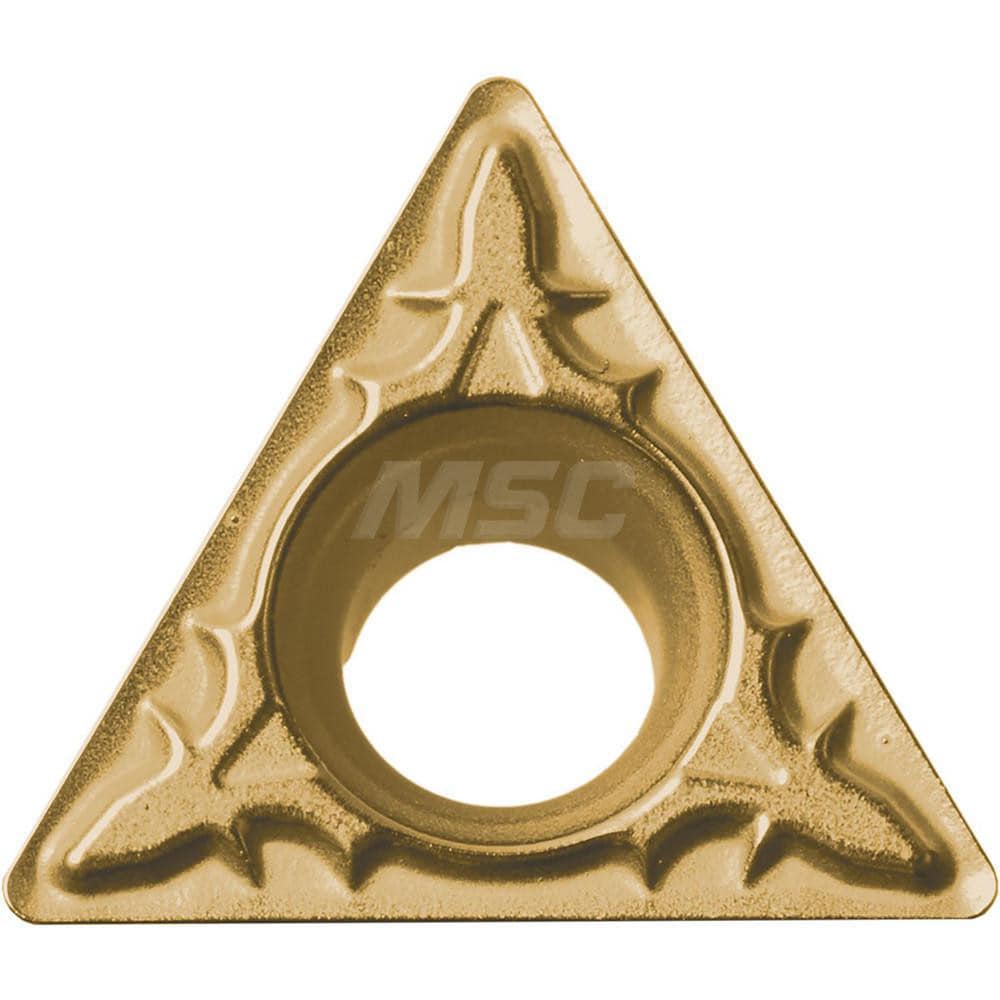

Turning Insert: TPMT222XP CA5525, Carbide
Item #: 18244459
Brand: Kyocera
Model #: TJR06911
Product Specifications
| ANSI Insert Code | TPMT222 |
| ISO Insert Code | TPMT110308 |
| Relief Angle | 11 |
| Insert Style | TPMT |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 60 |
| Manufacturer Grade | CA5525 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1299 |
| Maximum Depth of Cut (Decimal Inch) | 0.1445 |
| Insert Holding Method | Screw |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4334 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Iso Code | TPMT110308XP |
| Manufacturers Catalog Number | TJR06911 |
| Material Grade | P30; P10; P20 |
| Coating Classification | CVD |
| Chip Breaker | XP |
| Rake Angle | 8 |
| Cutting Edge Style | Honed |
| Industry Standard Number | TPMT222XPCA5525 |
| Width (Decimal Inch - 4 Decimals) | 0.4334 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Back Boring; Copying; Internal Facing; Boring |
| ANSI Size Code | 222 |
| ISO Size Code | 110308 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 222 |
| ANSI Insert Code | TPMT222 |
| ISO Insert Code | TPMT110308 |
| Relief Angle | 11 |
| Insert Style | TPMT |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 60 |
| Manufacturer Grade | CA5525 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1299 |
| Maximum Depth of Cut (Decimal Inch) | 0.1445 |
| Insert Holding Method | Screw |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4334 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Iso Code | TPMT110308XP |
| Manufacturers Catalog Number | TJR06911 |
| Material Grade | P30; P10; P20 |
| Coating Classification | CVD |
| Chip Breaker | XP |
| Rake Angle | 8 |
| Cutting Edge Style | Honed |
| Industry Standard Number | TPMT222XPCA5525 |
| Width (Decimal Inch - 4 Decimals) | 0.4334 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Back Boring; Copying; Internal Facing; Boring |
| ANSI Size Code | 222 |
| ISO Size Code | 110308 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 222 |
| MSC Part # | 18244459 |
| Mfr Part # | TJR06911 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
