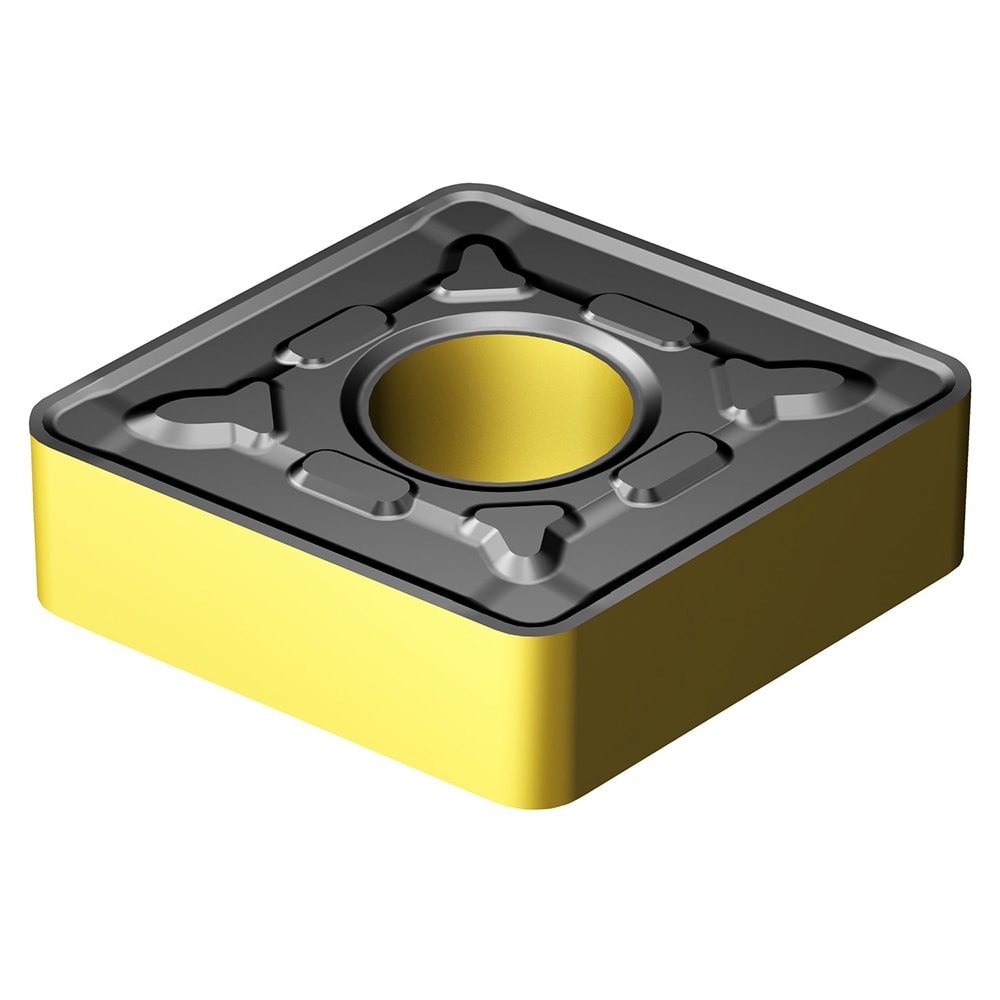

Turning Insert: CNMG644-PR 4405, Carbide
Item #: 01338151
Brand: Sandvik Coromant
Model #: 8322602
Product Specifications
| ANSI Insert Code | CNMG |
| ISO Insert Code | CNMG190616 |
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (mm) | 1.59 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Included Angle | 80 |
| Manufacturer Grade | 4405 |
| Coating/Finish | TiCN/Al2O3/TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 6.35 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | T-Max P |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (mm) | 19.05 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Steel (P) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.3120 |
| Hole Diameter (Mm) ( - 0 Decimals) | 7.93 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | CNMG 19 06 16-PR 4405 |
| Manufacturers Catalog Number | CNMG 644-PR 4405 |
| Chip Breaker | PR |
| ISO Size Code | 190616 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1906 |
